J803 Outdoor Power Bank 30000mAh LED Light | OEM

Description

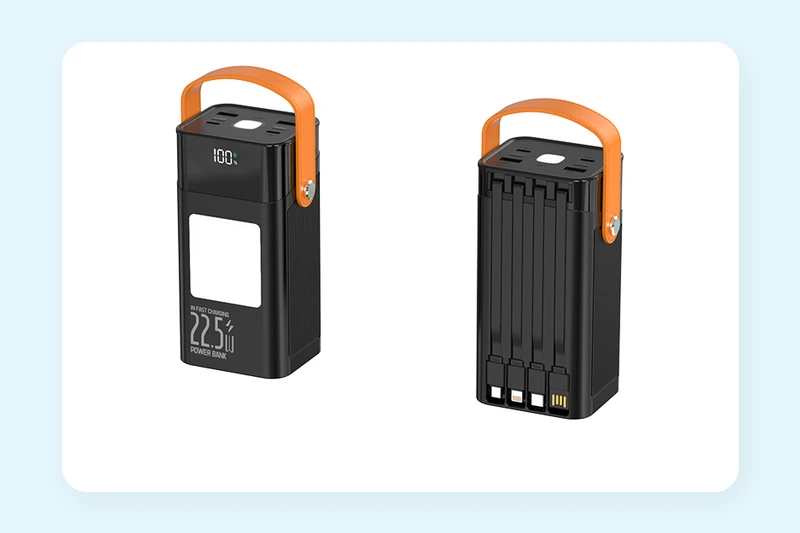

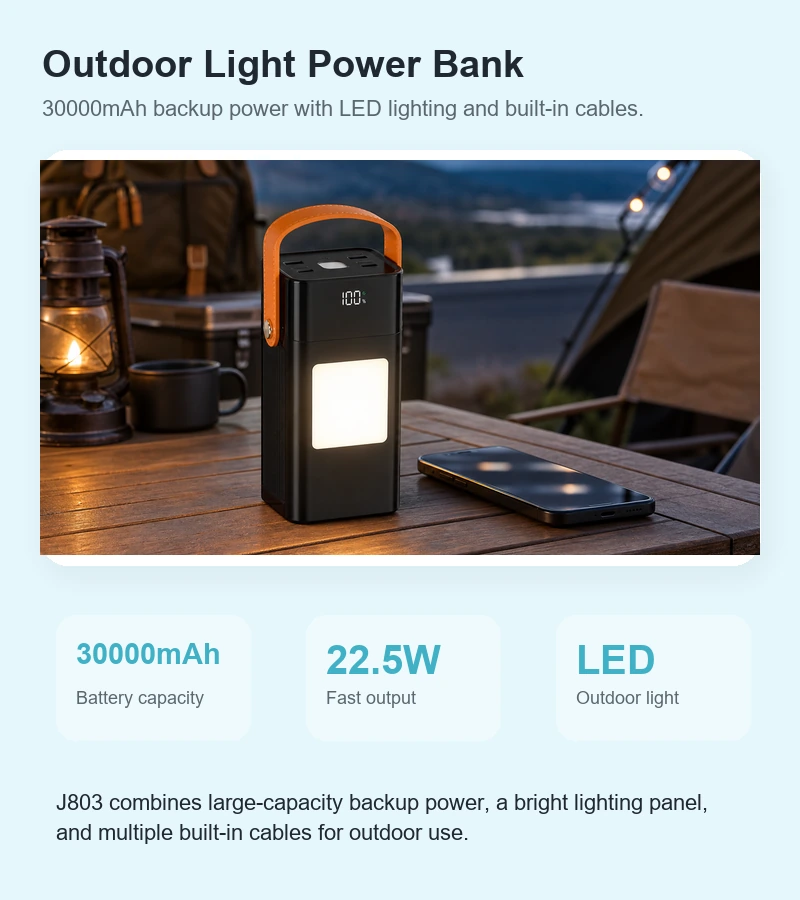

J803 Power Bank is designed for outdoor backup power, combining 30000mAh capacity, LED lighting, fast output and multiple built-in cable options.

Frequently Asked Questions: J803 Outdoor Power Bank

1. What specifications are confirmed for the J803?

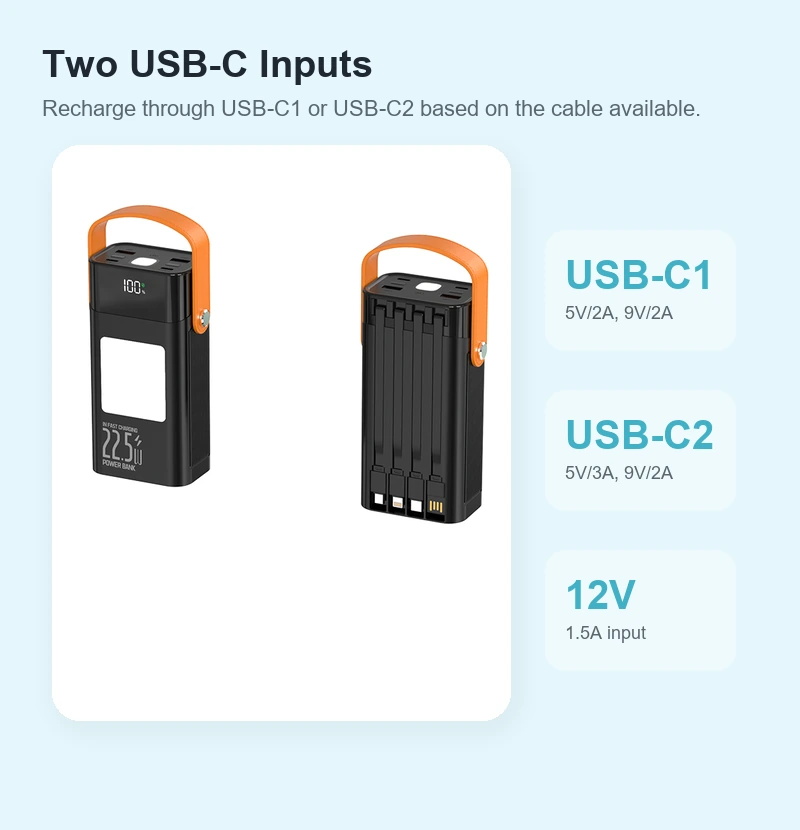

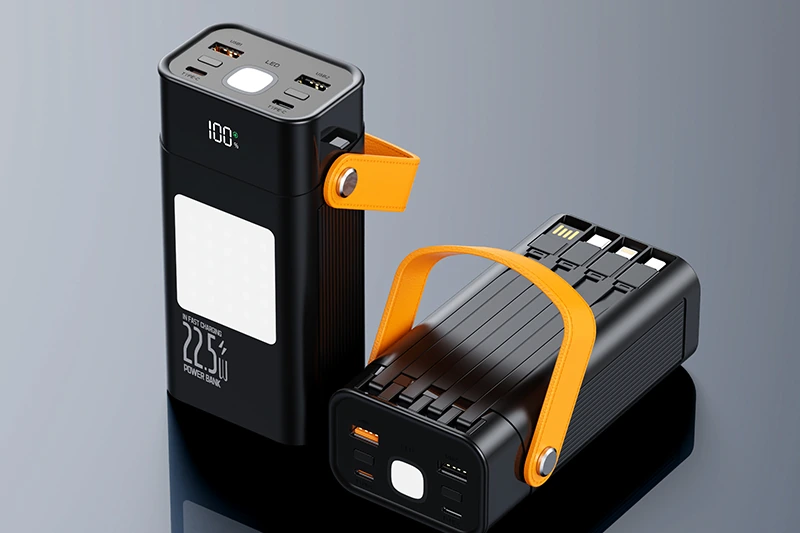

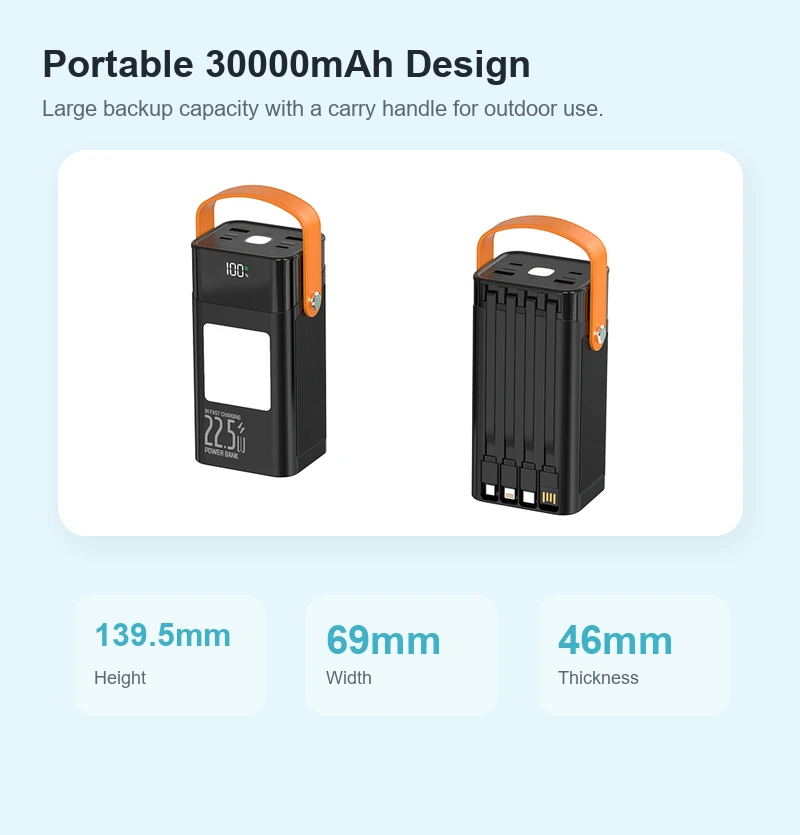

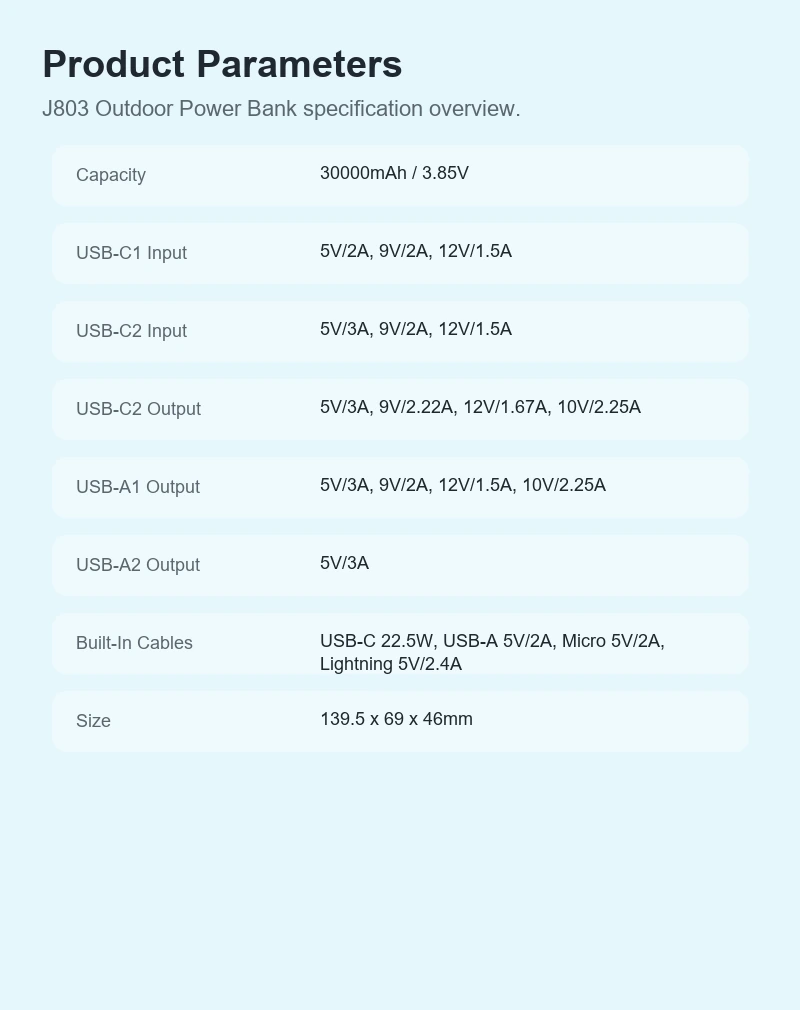

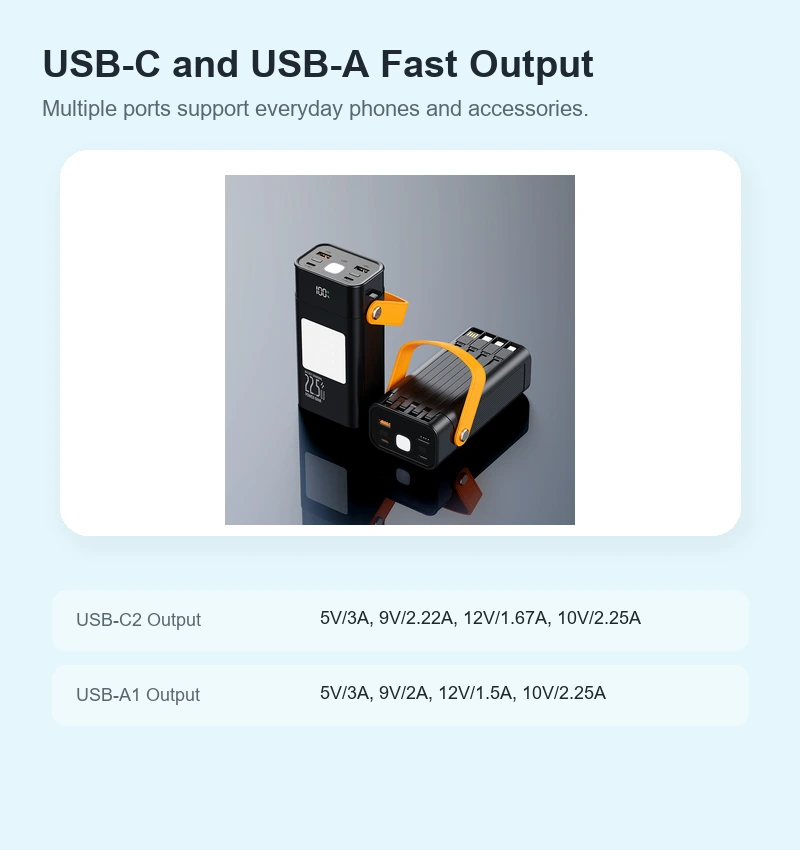

The published J803 specification lists a 30000mAh capacity at 3.85V, a 139.5 × 69 × 46mm body, two Type-C inputs, a Type-C2 output, two USB-A outputs, built-in USB-A, USB-C, Micro, and Lightning cable outputs, and an LED light. The highest listed wired output profiles are 10V/2.25A on Type-C2, USB-A1, and the built-in USB-C cable. Final rated energy, weight, material, cell configuration, labeling, and port behavior should be confirmed on the approved production datasheet.

2. Can the J803 charge several devices at the same time?

The page lists multiple ports and built-in cable outputs, but it does not publish a verified simultaneous-output matrix, total shared-power limit, priority logic, or per-output allocation. USB-C1 is listed as an input, not an output. Buyers requiring multi-device charging should confirm which output combinations are supported, total and per-output power, protocol behavior, temperature rise, protection response, and whether any output is disabled or reduced when others are active.

3. How should buyers evaluate J803 energy and passenger-travel requirements?

Multiplying the listed 30000mAh capacity by the listed 3.85V gives a nominal calculation of 115.5Wh. The final rated energy and transport classification must be based on the approved cell, battery pack, product label, test documents, packaging, current rules, and the carrier’s requirements. Buyers should request complete battery and transport documentation and should not publish passenger-travel eligibility until the final production configuration has been reviewed for the intended route and carrier.

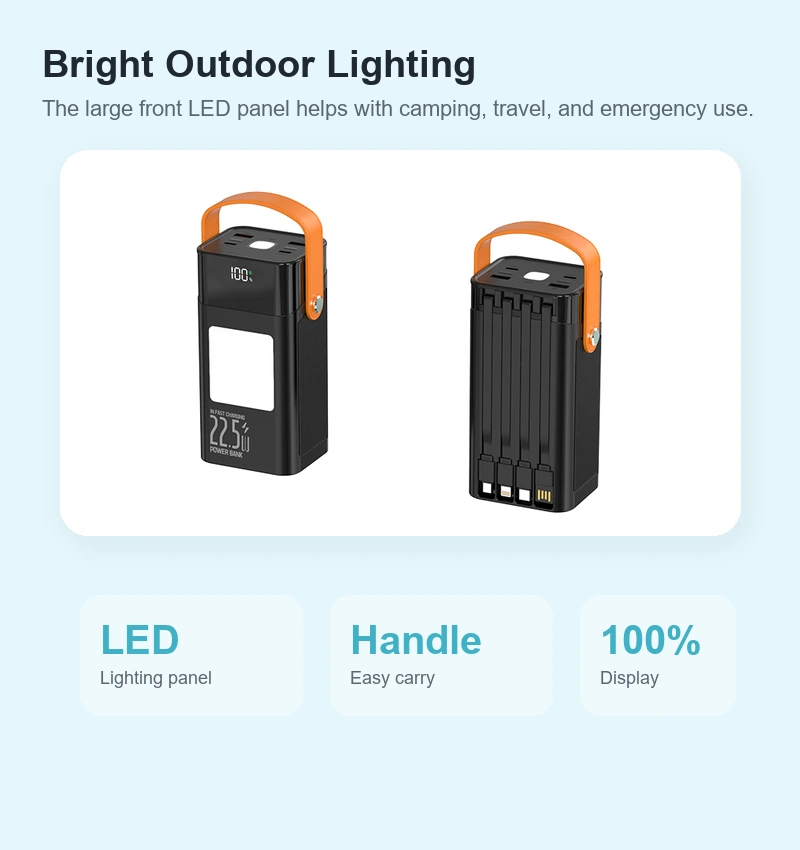

4. What lighting performance is confirmed for the J803 LED?

The product specification confirms an integrated LED light but does not publish verified lumen output, beam pattern, color temperature, operating modes, flash rate, lighting radius, power consumption, or runtime. Buyers should request photometric data, mode definitions, runtime curves, temperature-rise results, switch behavior, low-battery strategy, and control instructions for the final production configuration before making camping or emergency-light claims.

5. What should buyers verify for the built-in cables?

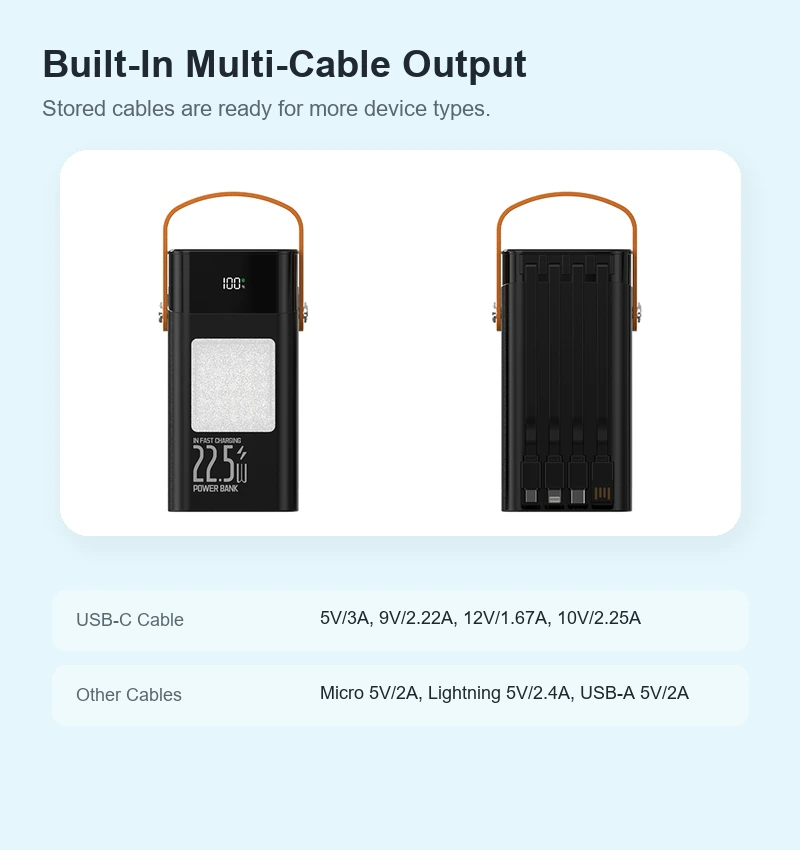

The published specification lists built-in USB-A and Micro cable outputs at 5V/2A, a Lightning cable output at 5V/2.4A, and a USB-C cable output with profiles up to 10V/2.25A. These connectors do not by themselves prove universal compatibility or a named fast-charging protocol. Buyers should verify cable function, target devices, connector compliance, bend durability, pull strength, voltage drop, temperature rise, and simultaneous-output behavior on the approved sample.

6. How long does the J803 take to recharge?

A verified full-recharge time and simultaneous-input mode are not published in the current specification. Recharge time depends on the approved cell and pack, starting state of charge, charger and cable, supported input combination, negotiated input profile, conversion losses, temperature, and charging strategy. Buyers should request recharge curves, input-power records, temperature data, end-of-charge criteria, and repeat-test conditions before publishing recharge-time claims.

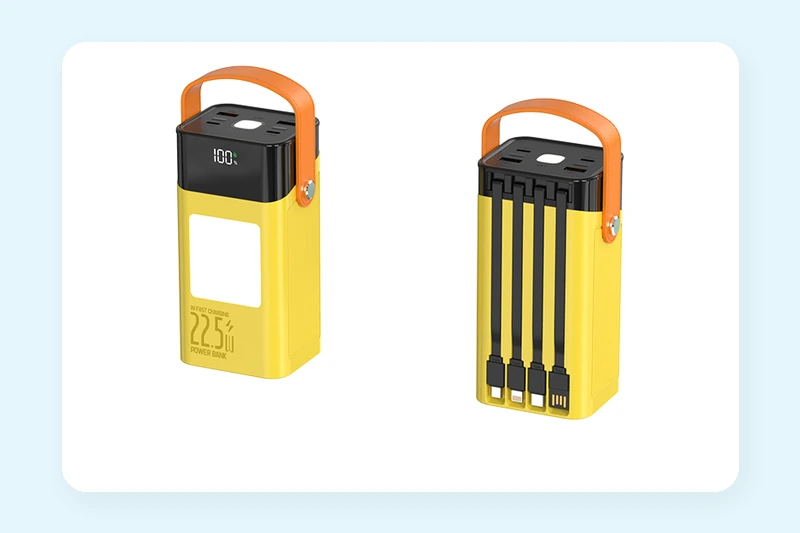

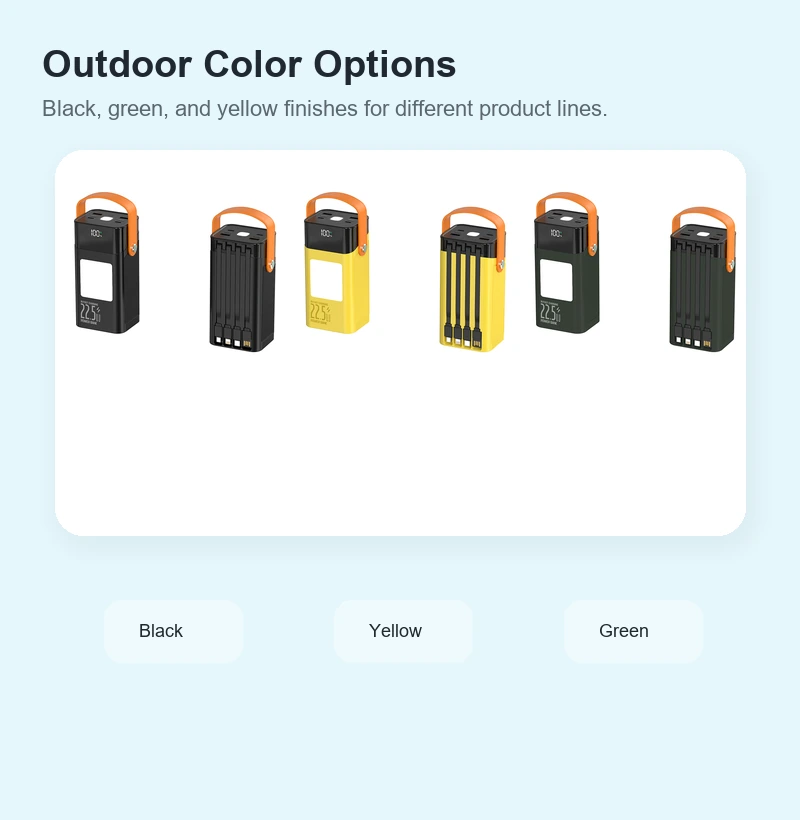

7. What OEM and ODM options are available for the J803?

Standard OEM service starts at 500 pieces for logo and packaging on the existing J803 platform. Light customization, such as an approved shell color, documentation, or packaging change, generally starts at 1,000 pieces. LED system, cable, battery, PCBA, firmware, thermal design, connector system, or structural changes are deeper ODM work and generally start at 2,000 pieces. Final MOQ, color and packaging feasibility, samples, tooling, lead time, and certification scope must be confirmed in the quotation.
