AJ08 Compact Built-in Cable Power Bank | 22.5W Fast Charge

Frequently Asked Questions: AJ08 Compact Built-in Cable Power Bank

1. Just how compact is the AJ08 compared to everyday objects people carry?

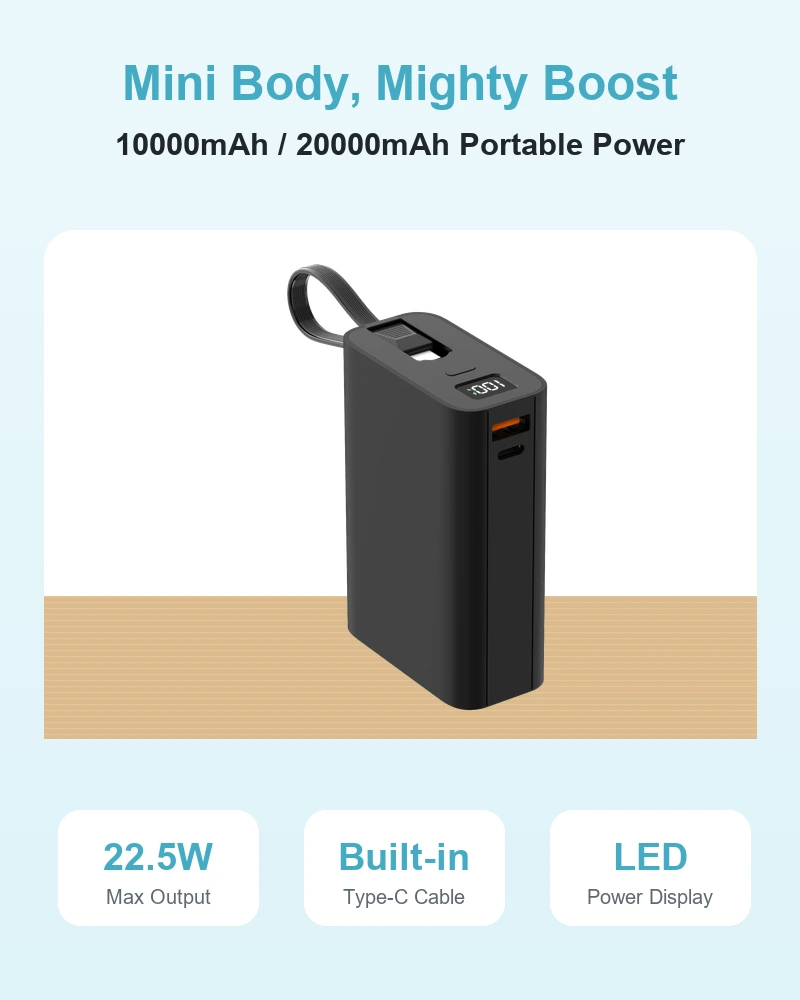

The 10,000mAh AJ08 measures just 73×59×24mm and weighs 169g — that is smaller than a standard credit card (85×54mm) in footprint and roughly the size of a car key fob in thickness. To put it in perspective, you can comfortably hold the AJ08 and your phone in one hand while charging. The 20,000mAh version at 92×63×32mm and 308g is still smaller than most 10,000mAh power banks from competing brands, making it one of the most space-efficient high-capacity chargers available. This compactness is achieved through the 146074 polymer cells, which pack higher energy density per cubic centimeter than standard 18650 cylindrical cells.

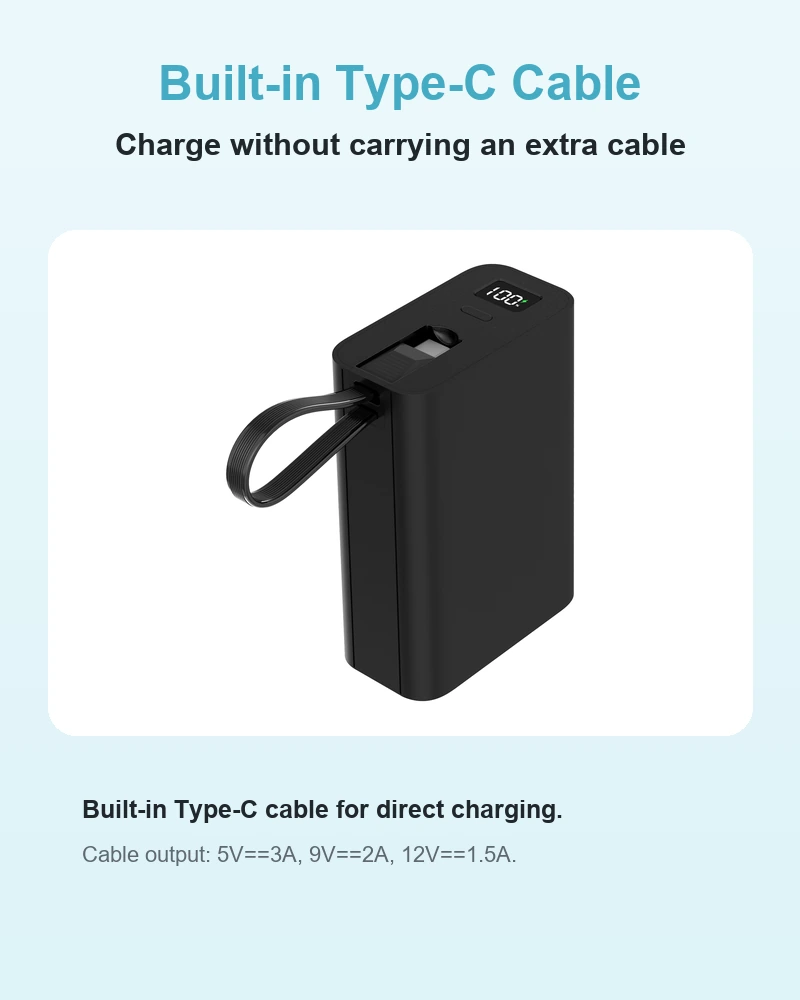

2. How durable is the built-in Type-C cable considering it is permanently attached to the power bank?

The AJ08’s built-in Type-C cable uses a reinforced strain relief at the exit point — the most common failure location on integrated cables. The cable itself is constructed with 22AWG tin-plated copper conductors wrapped in a braided nylon sheath rated for over 10,000 bend cycles at 180 degrees. The USB-C connector head is overmolded with a one-piece housing that eliminates the seam where cheaper cables typically split open. YULIDA tests every production batch by subjecting the cable to a robotic bending test machine, and we have not observed failure below 8,000 cycles in accelerated aging. If the cable does eventually wear, the AJ08 still has a standard Type-C port as a backup charging option.

3. What is the 146074 battery cell and why is it ideal for ultra-compact power banks?

The 146074 is a polymer lithium pouch cell measuring 14mm thick, 60mm wide, and 74mm long — a squat rectangular format that maximizes volume in a small footprint. Two 146074 cells in parallel deliver 10,000mAh while fitting into the AJ08’s 73×59mm body with almost zero wasted internal space. Compared to the 18650 cylindrical cell (18mm diameter), the 146074’s flat shape allows the AJ08 to be 24mm thick instead of 36mm+. The cell supports 1C continuous discharge, which means it can safely deliver the 22.5W maximum output without voltage sag. For B2B buyers, the 146074 is a mature cell format with stable supply chains and consistent quality across production batches.

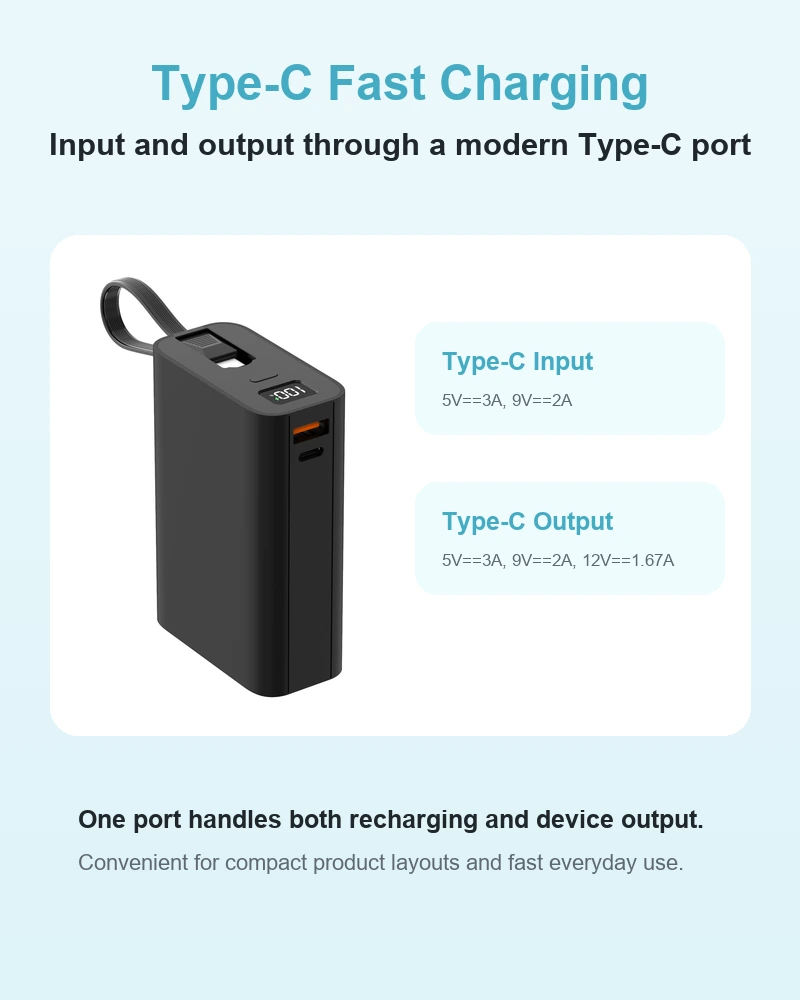

4. Can the built-in cable handle 22.5W fast charging or is it limited to slower speeds?

The built-in Type-C cable on the AJ08 fully supports 22.5W output at 5V/3A, 9V/2A, and 12V/1.5A — the same fast charging capability as the dedicated Type-C port. This means you can fast-charge a Samsung Galaxy S24 at 22.5W Super Fast Charging directly from the integrated cable without needing a separate cord. The cable also supports 18W input for recharging the power bank itself, so a single USB-C to USB-C cable from a wall charger to the AJ08’s port will refill the power bank while the built-in cable remains neatly stowed. The cable’s 22AWG conductors are specifically sized to handle 3A continuous current without heating beyond 40°C.

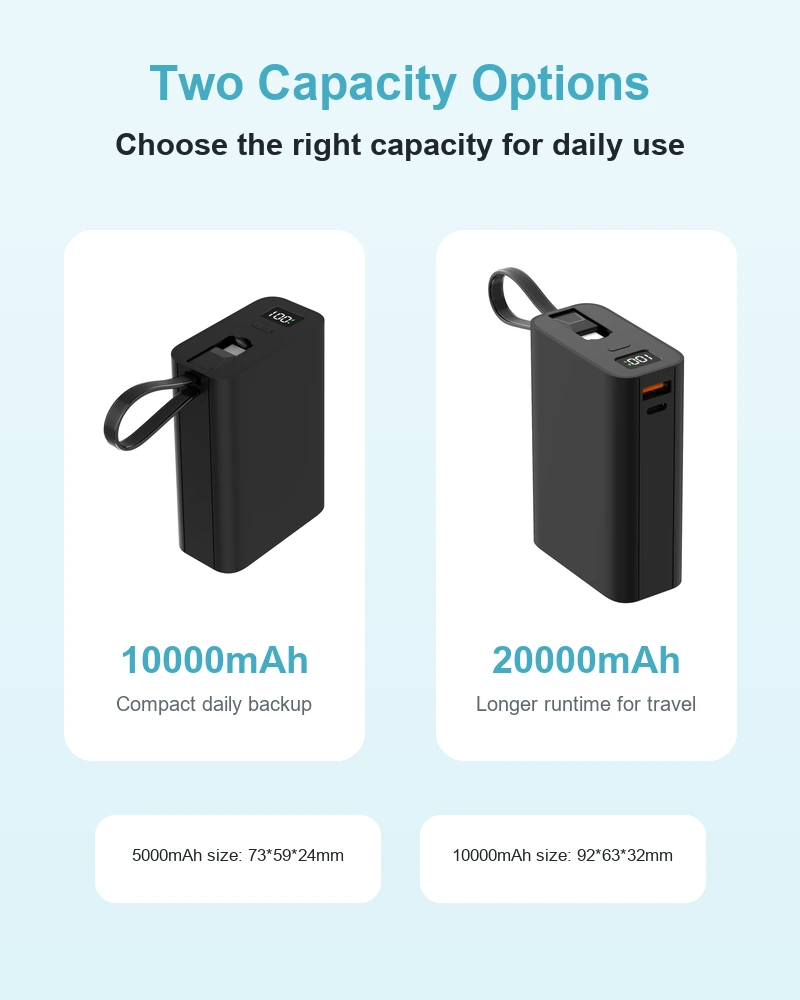

5. How does the AJ08’s 20,000mAh version perform for multi-day trips versus the 10,000mAh?

The 20,000mAh AJ08 provides roughly 3.5 to 4.5 full smartphone charges, making it suitable for weekend trips, camping, or business travel where outlet access is unreliable. It can charge an iPhone 15 approximately 4.5 times, a Galaxy S24 Ultra about 3.5 times, and an iPad Mini once with capacity to spare. The 10,000mAh version provides 1.6 to 2.0 charges — adequate for a full day out but typically requiring overnight recharging. The 20K model at 308g is noticeably heavier than the 10K at 169g, so for B2B buyers, the 10K targets the everyday carry market while the 20K serves the travel and outdoor segments.

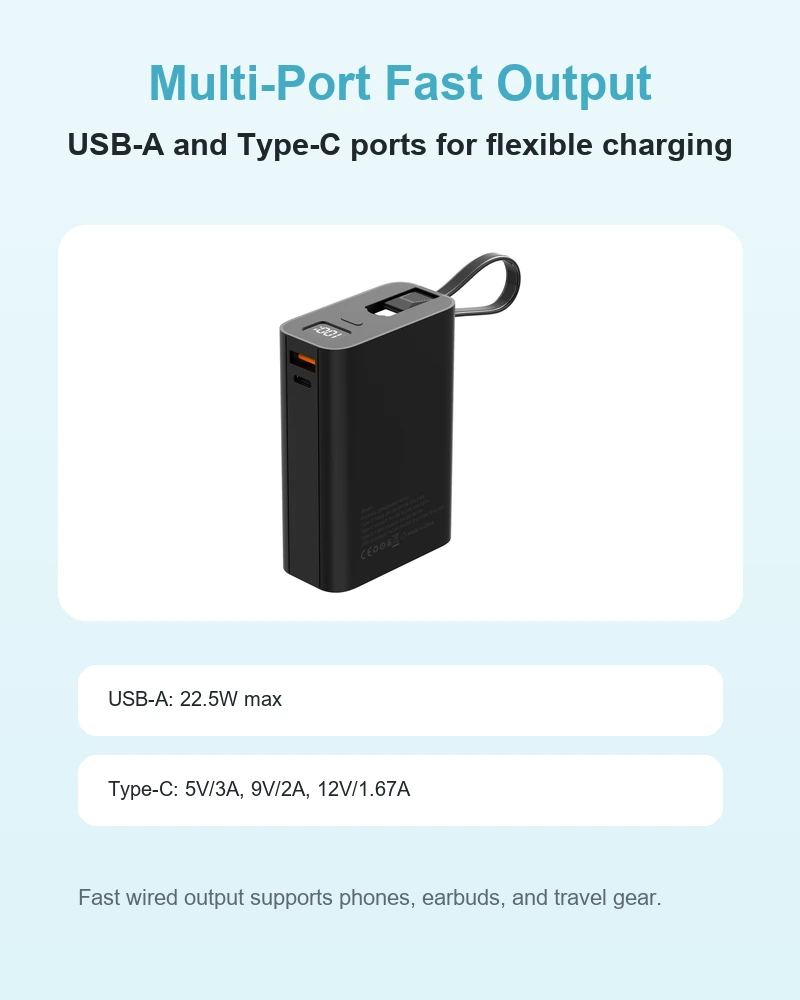

6. Does the AJ08’s USB-A port support the same fast charging protocols as the Type-C port?

The USB-A port on the AJ08 supports up to 22.5W output through multiple fast charging protocols: Quick Charge 3.0 (5V/3A, 9V/2A), Huawei SuperCharge Protocol (SCP) at 10V/2.25A, and Samsung Adaptive Fast Charging (AFC) at 9V/2A. This means the USB-A port can fast-charge legacy devices that do not support USB-C PD, including older Android phones, Bluetooth speakers, and various accessories. When both the Type-C and USB-A ports are used simultaneously, total output is intelligently shared with priority given to the Type-C port. The AJ08 automatically detects the connected device’s fastest supported protocol and negotiates the optimal voltage and current.

7. What OEM customization leverages the AJ08’s compact form factor for brand differentiation?

At MOQ 500, the AJ08’s small body offers creative branding opportunities that larger power banks cannot match. The flat front and back surfaces are ideal for full-color UV printing — the 73×59mm area is large enough for detailed artwork while remaining pocket-sized. The built-in cable can be customized with a branded silicone cable tie or a color-matched braided sheath that carries your brand’s secondary color. The compact size enables innovative packaging formats like matchbox-style slide boxes or miniature hard cases that double as travel storage. For corporate gift programs, the AJ08’s 169g weight keeps international shipping costs low, and the integrated cable eliminates the need to include a separate charging cord in the gift box.
