Description

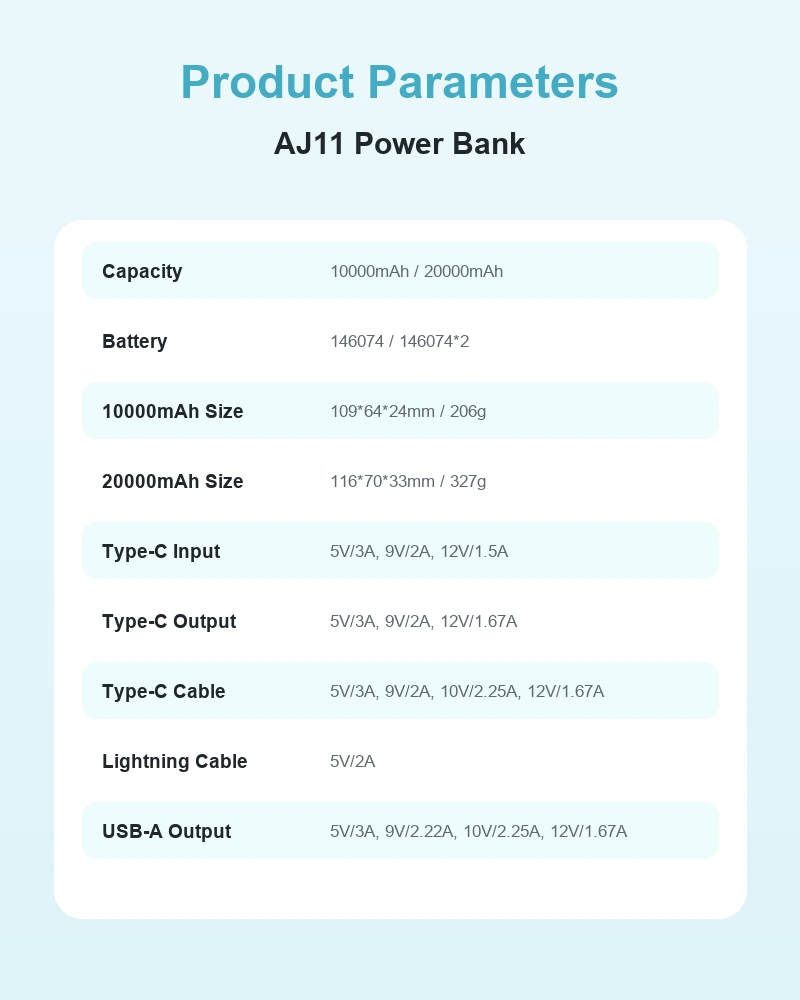

| Item No.: | AJ11 Power Bank |
| Capacity: | 10000mAh / 20000mAh |
| Battery: | 146074 / 146074*2 |

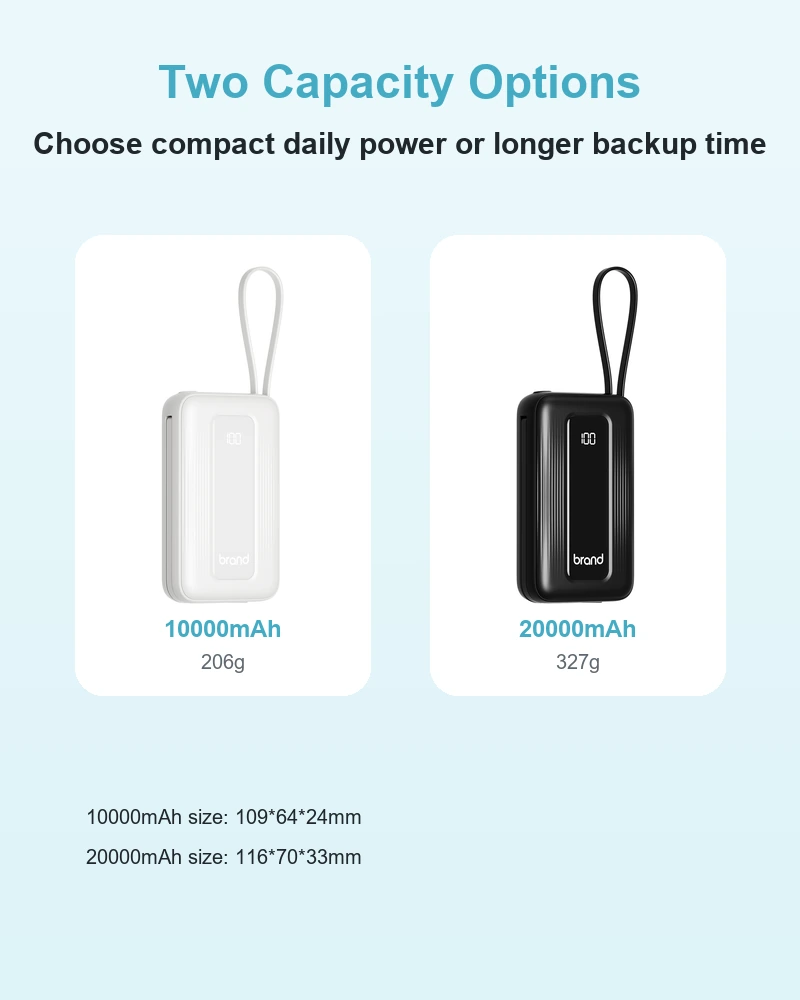

| 10000mAh Size / Weight: | 109*64*24mm / 206g |
| 20000mAh Size / Weight: | 116*70*33mm / 327g |
| Type-C Input: | 5V/3A, 9V/2A, 12V/1.5A |
| AJ11 Output via Type-C: | 5V/3A, 9V/2A, 12V/1.67A |

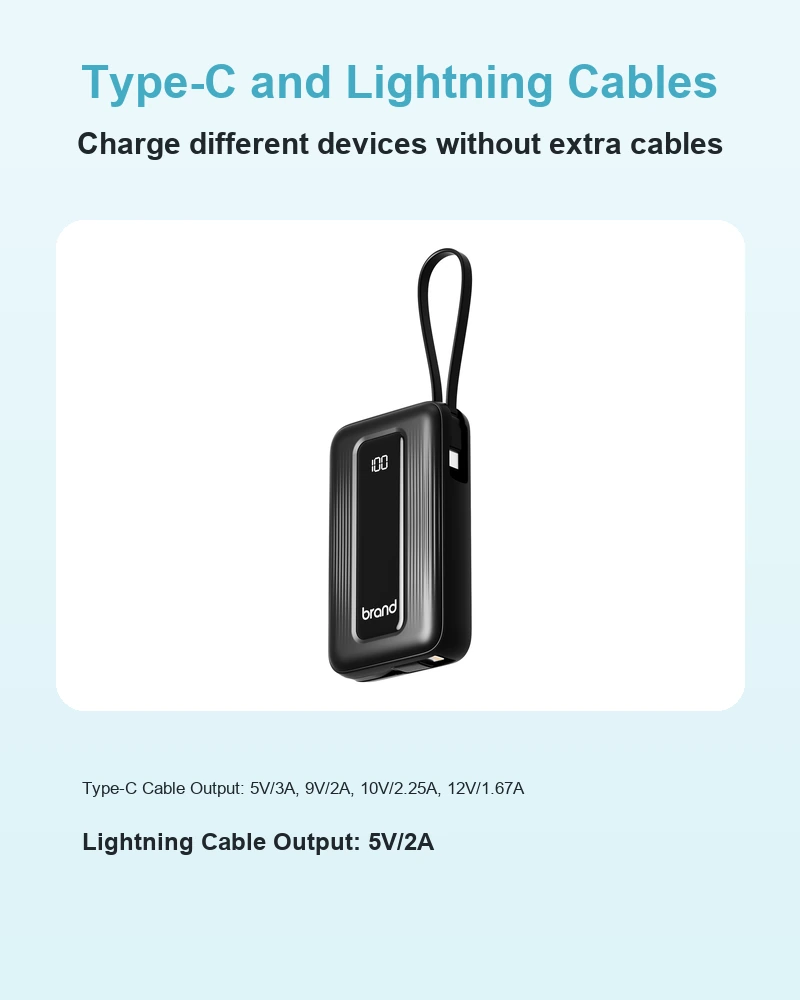

| Type-C Cable Output: | 5V/3A, 9V/2A, 10V/2.25A, 12V/1.67A |
| Lightning Cable Output: | 5V/2A |

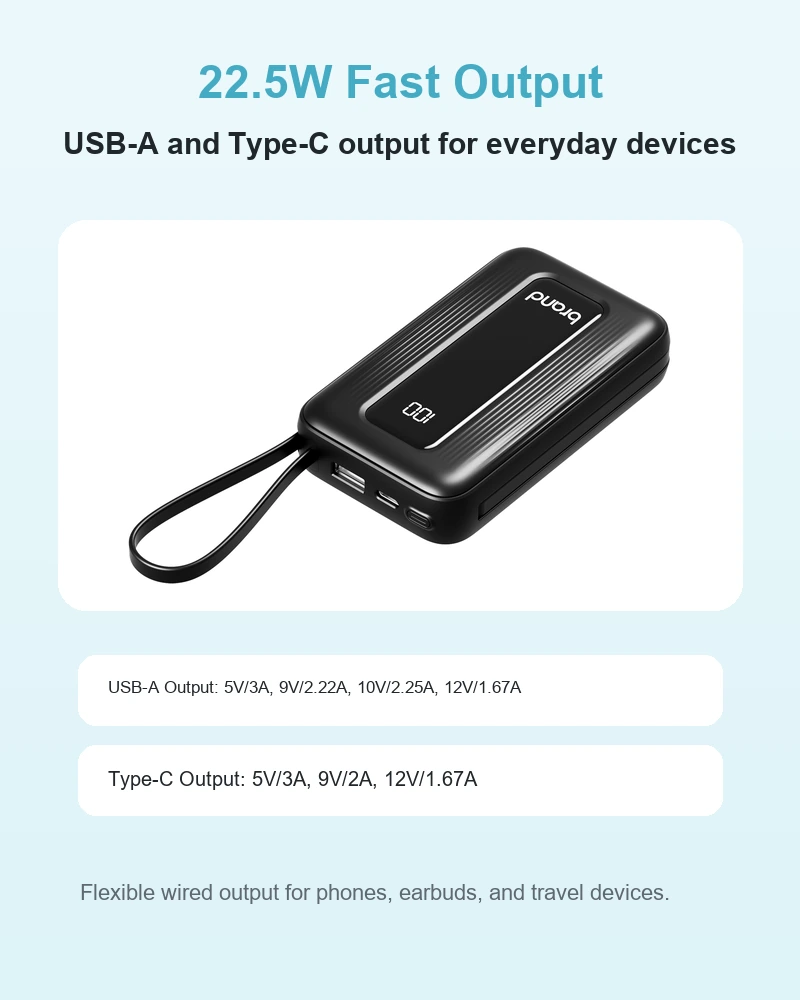

| USB-A Output: | 5V/3A, 9V/2.22A, 10V/2.25A, 12V/1.67A |

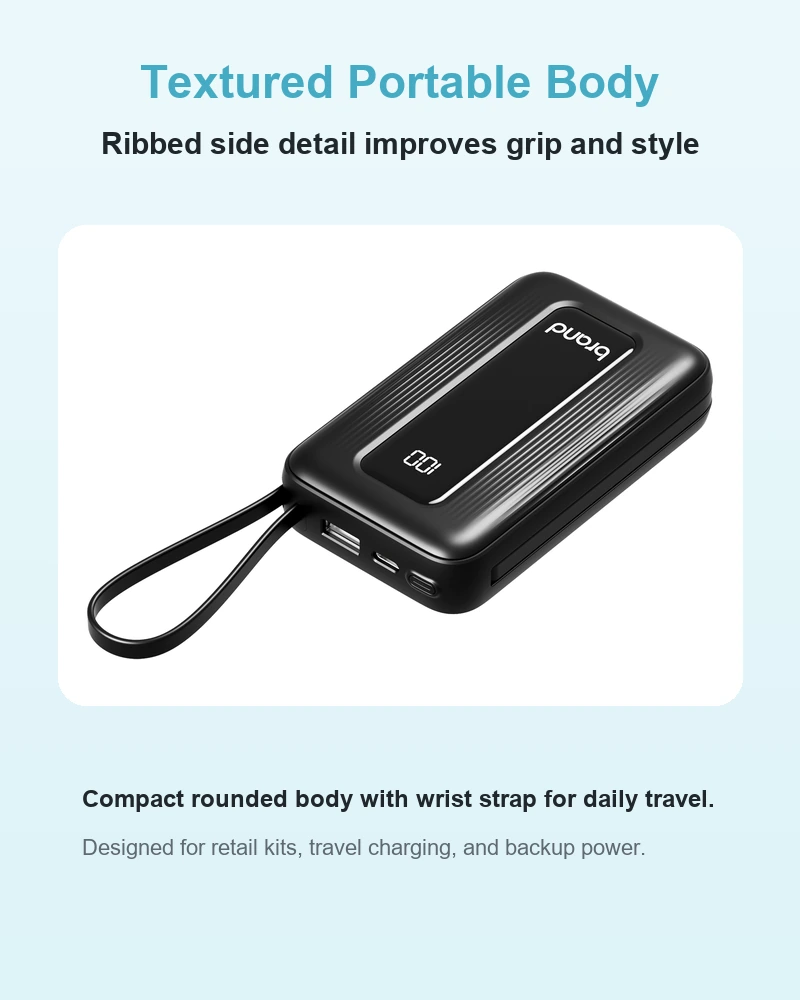

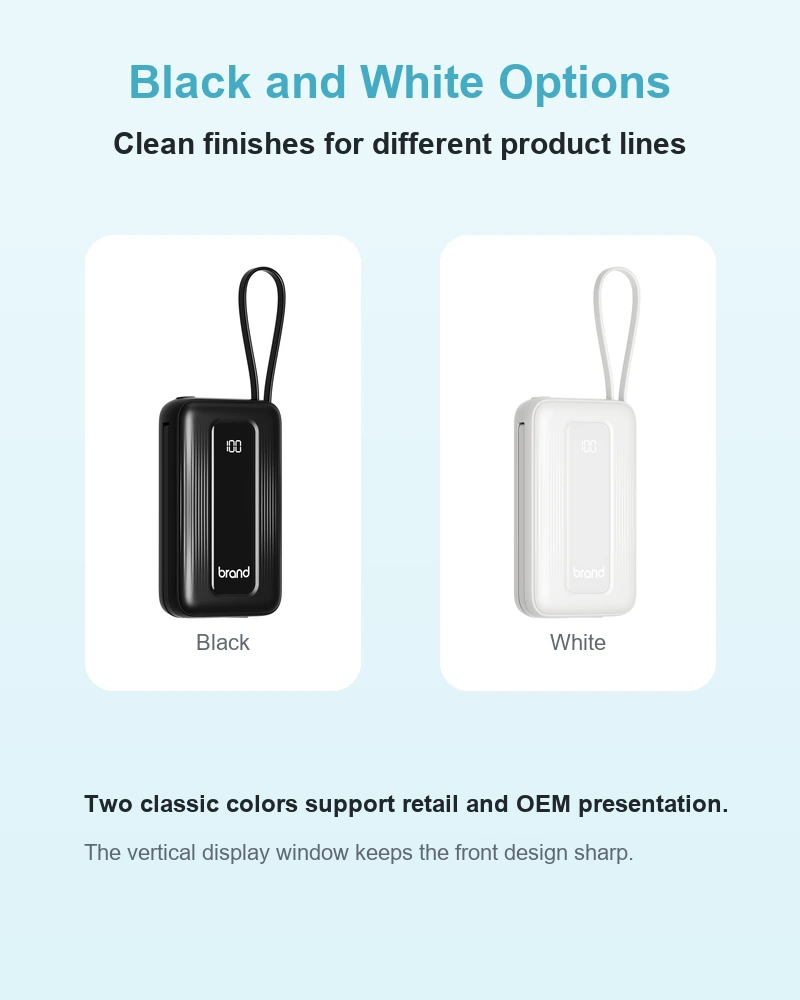

| Feature: | Built-in Type-C and Lightning cables, LED digital display, compact portable body |

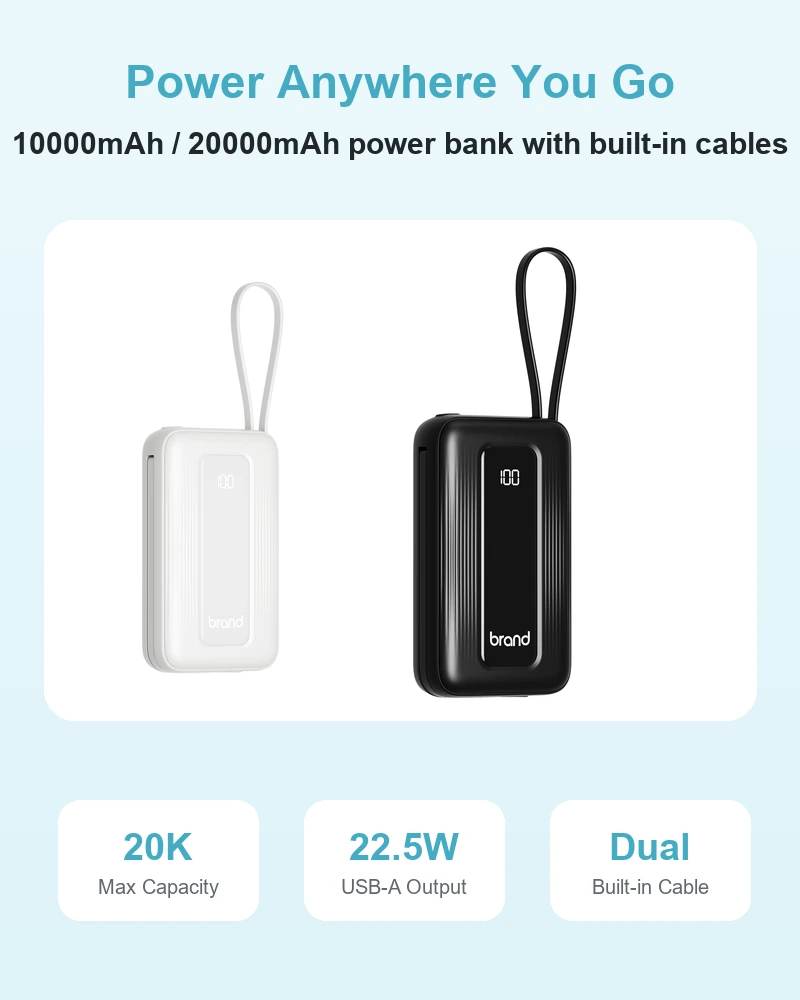

AJ11 sourcing summary: The published specification lists 10000mAh and 20000mAh variants with different dimensions and weights, built-in Type-C and Lightning cables, a Type-C port, USB-A output, and an LED digital display. Type-C port output reaches 12V/1.67A, while the built-in Type-C cable and USB-A profiles reach 10V/2.25A. The Lightning cable is listed at 5V/2A. These profiles do not by themselves prove named protocols, specific tablet or laptop compatibility, simultaneous maximum power, pass-through charging, display accuracy, or recharge time.
What B2B buyers should verify before ordering
- Capacity variants: obtain separate approved datasheets, cell specifications, configurations, watt-hours, usable-energy tests, labels, weights, dimensions, and lot records for the 10000mAh and 20000mAh versions.
- Wired outputs: request the controller specification, protocol matrix and negotiation logs, single- and multi-output tables, sustained-output duration, voltage drop, ripple, temperature rise, and protection response.
- Built-in cables: verify conductor and jacket materials, connector authorization where applicable, electrical profiles, flex and insertion life, pull strength, retention, corrosion resistance, voltage drop, warranty handling, and repairability.
- LED display: define displayed values, accuracy, refresh interval, brightness, viewing angle, charging indicators, battery-state calculation, low-battery behavior, and firmware version.
- Combined operation: confirm every required port and cable combination, total power, per-output allocation, port priority, pass-through behavior, temperature data, and automatic shutoff.
- Claim control: do not publish device charging percentages, recharge time, laptop or tablet compatibility, cable-cycle life, pass-through charging, or simultaneous maximum power without reports.
OEM and ODM planning
Standard logo and packaging OEM orders start at 500 pieces. Approved light customization generally starts at 1,000 pieces. Changes to capacity, battery configuration, PCBA, built-in cables, ports, display hardware, firmware, charging controller, thermal design, dimensions, or enclosure are deeper ODM work and generally start at 2,000 pieces. Final MOQ, version, specifications, samples, tooling, lead time, compatibility, labeling, and certification scope must be confirmed in the quotation.
Frequently Asked Questions: AJ11 Dual Cable Power Bank with LED Display
1. What specifications are currently published for the AJ11?
The AJ11 table lists 10000mAh and 20000mAh options using one or two 146074 battery designations. The 10000mAh version is listed at 109 × 64 × 24mm and 206g, while the 20000mAh version is listed at 116 × 70 × 33mm and 327g. Type-C input profiles reach 12V/1.5A, Type-C port output reaches 12V/1.67A, built-in Type-C cable output reaches 10V/2.25A, Lightning-cable output is 5V/2A, and USB-A output reaches 10V/2.25A. The table also lists an LED digital display and built-in Type-C and Lightning cables.
2. What battery and capacity evidence should buyers request for each AJ11 version?
The capacity figures and 146074 designations do not by themselves establish cell supplier, chemistry, exact configuration, nominal voltage, watt-hours, usable output energy, conversion efficiency, cycle life, or production consistency. Buyers should request a separate approved datasheet, cell specification and drawing, battery configuration, final label, charge and discharge energy curves, conversion-efficiency data, cycle and aging conditions, protection specification, weight tolerance, and lot-level capacity records for both the 10000mAh and 20000mAh versions.
3. What do the AJ11 wired output profiles prove about charging performance?
The Type-C port lists profiles up to 12V/1.67A, the built-in Type-C cable and USB-A output list profiles up to 10V/2.25A, and the Lightning cable lists 5V/2A. These voltage-current values do not by themselves prove named charging protocols, tablet or laptop compatibility, device-specific charging percentages, sustained maximum output, or cable certification. Buyers should request the controller specification, supported protocol matrix and negotiation logs, cable requirements, output-duration and voltage-drop data, temperature-rise tests, and validation with every required charger and device.
4. Can AJ11 outputs operate simultaneously or support pass-through charging?
The current table does not publish a simultaneous-output matrix, total combined-power limit, port priority, voltage behavior, charge-while-discharge support, recharge priority, battery discharge limit, or thermal-control thresholds. Buyers should not add the individual maximums or claim pass-through charging without evidence. Request the controller and power-path specifications, every supported port and cable combination, per-output power allocation, voltage and ripple data, temperature-rise and abnormal-operation tests, protection response, automatic shutoff behavior, and final-configuration samples.

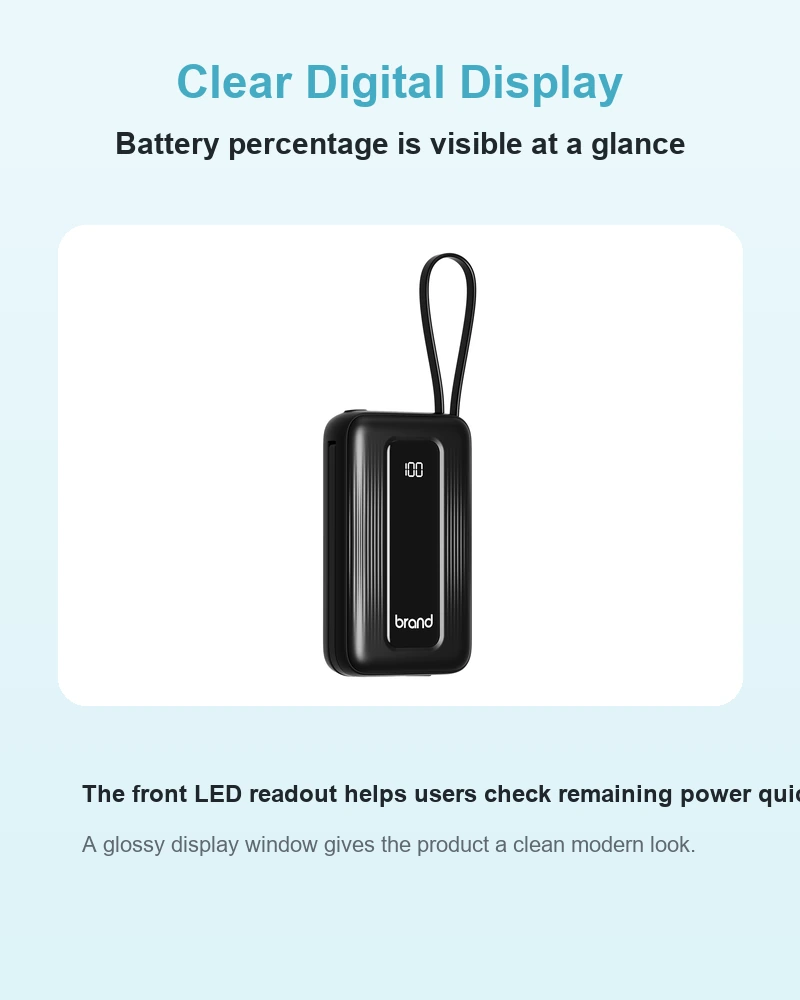

5. What LED display information and accuracy should buyers verify?
The table confirms an LED digital display but does not publish its position, displayed parameters, charging indicators, fast-charge indication, digit behavior, brightness, viewing angle, refresh interval, accuracy, calibration method, battery-state calculation, low-battery logic, or firmware version. Buyers should request the display and controller specification, approved user interface, battery-percentage calculation method, accuracy and repeatability tests, brightness and viewing-angle data, sample video, firmware identification, and confirmation of which values are measured and which are calculated.
6. What built-in cable durability and service evidence should buyers request?
The current table confirms built-in Type-C and Lightning cables but does not publish cable length, conductor and jacket materials, connector authorization, bend-cycle life, insertion life, pull strength, retention force, voltage drop, corrosion resistance, repairability, or replacement procedure. Buyers should request controlled cable drawings, supplier and material specifications, flex, insertion, pull, retention, and corrosion tests, post-test electrical measurements, production inspection standards, warranty handling, and confirmation of whether a failed cable can be serviced without replacing the product.
7. What OEM and ODM options are available for the AJ11?
Standard OEM service starts at 500 pieces for logo and packaging on the existing AJ11 platform. Light customization, such as an approved housing color, cable color, display presentation, documentation, labeling, or packaging change, generally starts at 1,000 pieces. Changes to capacity, battery configuration, PCBA, built-in cables, ports, display hardware, firmware, charging controller, thermal design, dimensions, or enclosure are deeper ODM work and generally start at 2,000 pieces. Final MOQ, version, specifications, samples, tooling, lead time, compatibility, labeling, and certification scope must be confirmed in the quotation.
