Description
AJ07 is a retractable Type-C cable power bank platform with published 10000mAh and 20000mAh options. The specification lists Type-C cable output up to 18W, Type-C port output up to 20W and USB-A output up to 22.5W. Capacity-specific dimensions, weight, usable energy, cooling performance and simultaneous-output behaviour should be verified on the approved sample.
AJ07 Retractable Cable Power Bank at a Glance
- Capacity options: 10000mAh and 20000mAh
- Battery reference: 105555
- Retractable Type-C cable output: up to 12V/1.5A (18W)
- AJ07 Type-C Input: up to 9V/2A (18W)
- AJ07 Type-C Port Output: up to 12V/1.67A (approximately 20W)
- AJ07 USB-A Output: up to 10V/2.25A (22.5W maximum)

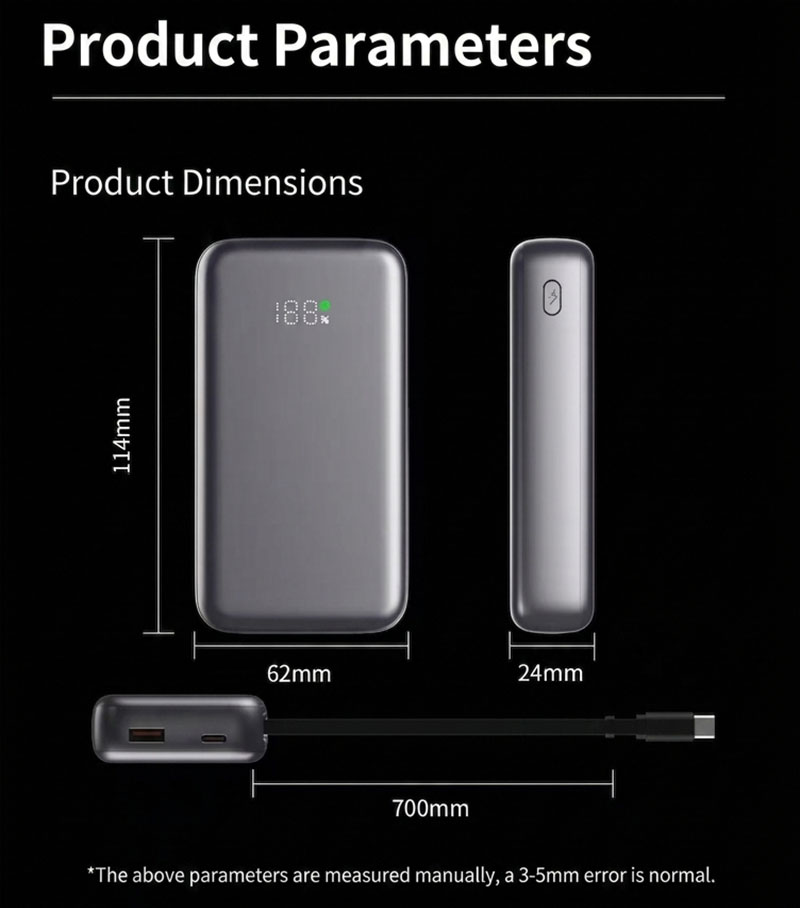

- Listed size and weight: 114 × 62 × 24mm; 209g

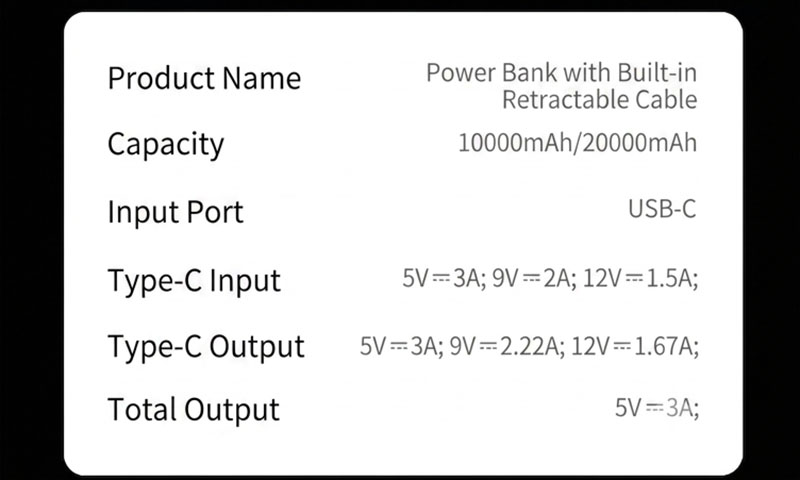

Published Technical Specifications
| Item No.: | AJ07 Ice-Sense Cooling Power Bank |
| Capacity: | 10000mAh/20000mAh, Battery: 105555 |
| Size: | 114*62*24mm |
| Weight: | 209g |
| Built-in Retractable Type-C Cable | 5V,3A; 9V, 2A; 12V, 1.5A |
| Type-C Input: | 5V, 3A; 9V, 2A; |
| AJ07 Type-C Output Profiles: | 5V,3A; 9V,2A; 12V, 1.67A |
| AJ07 USB-A Output Profiles: | 5V, 3A; 9V, 2A; 10V, 2.25A;,12V, 1.5A (22.5W Max) |

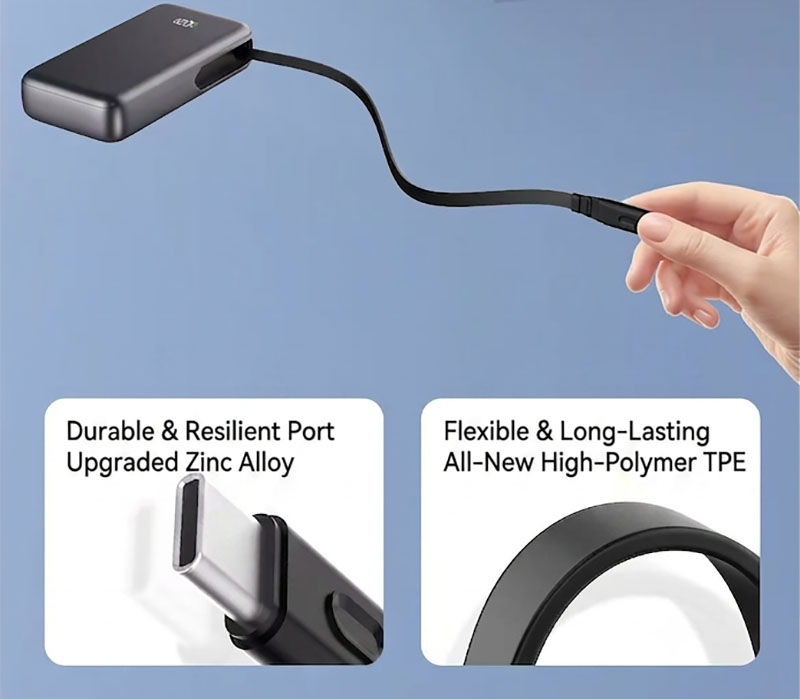

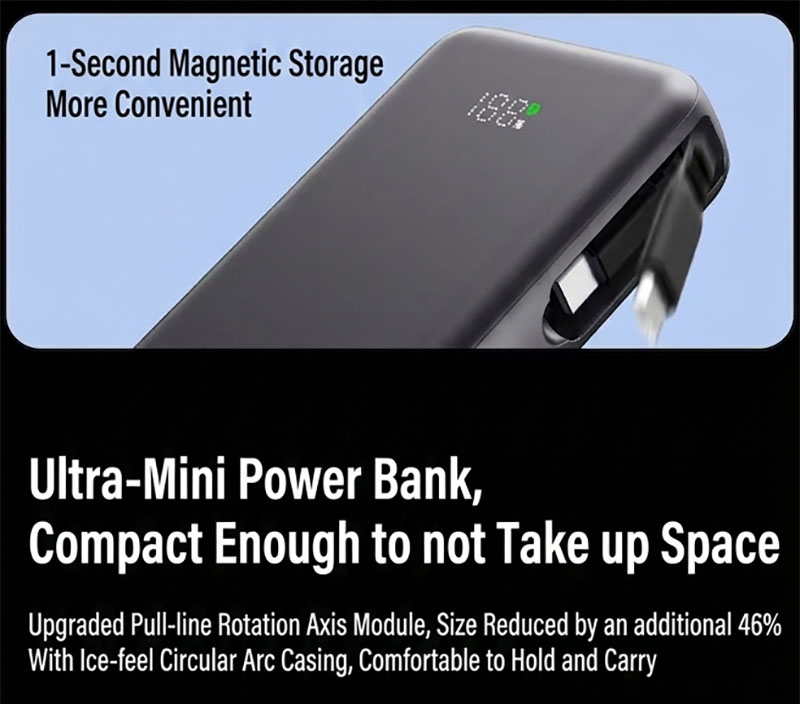

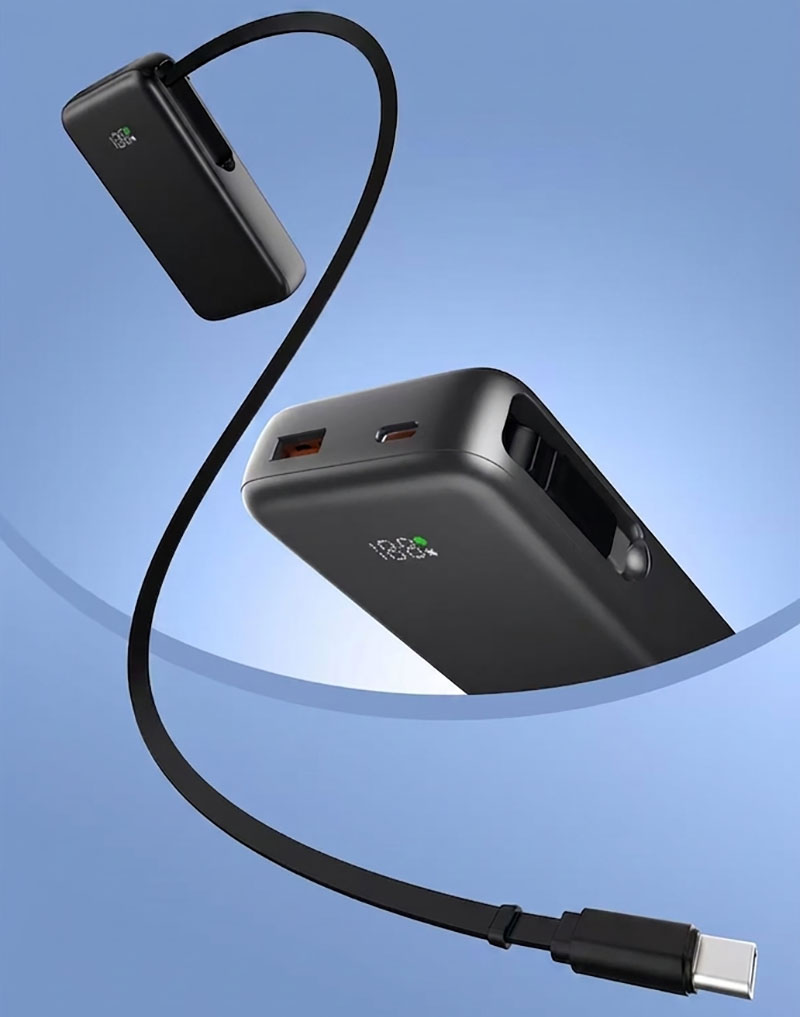

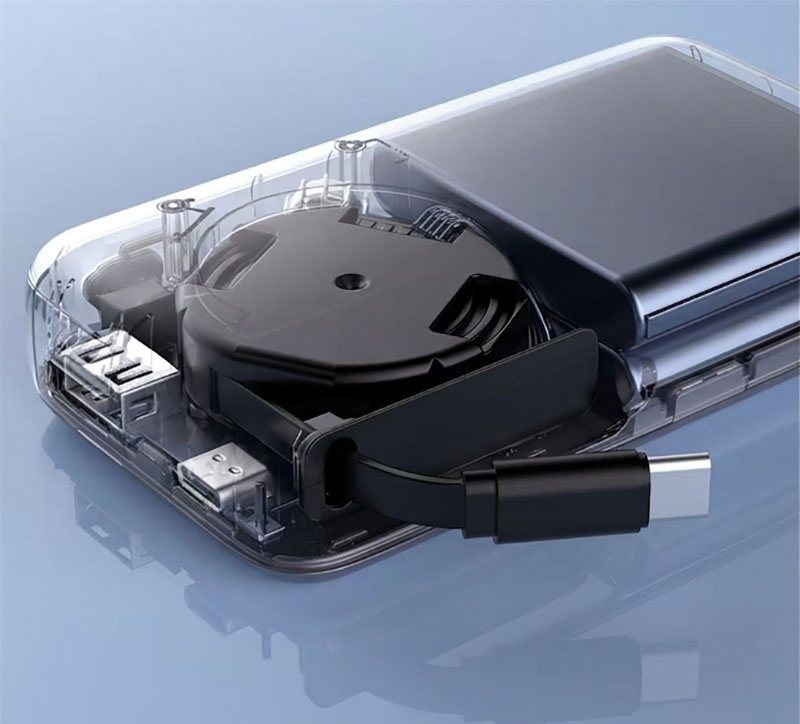

Retractable Cable and Type-C Configuration
The integrated retractable cable lists 5V/3A, 9V/2A and 12V/1.5A output profiles. The separate Type-C port lists input up to 9V/2A and output up to 12V/1.67A. Buyers should confirm cable length, connector construction, bend and pull tests, retraction-cycle requirement, data-transfer capability and power stability on the production sample.
USB-A and Simultaneous Output Verification
The USB-A output table includes 10V/2.25A with a stated 22.5W maximum. The page does not publish a verified total-output limit or power-allocation matrix for simultaneous use of the retractable cable, Type-C port and USB-A port. Test each required combination with target devices and record total power, per-output power, protocol behaviour and temperature rise.
Ice-Sense Cooling Claim Verification
“Ice-Sense Cooling” is part of the product name, but the published table does not define the cooling structure, control logic, temperature reduction, test conditions or comparison baseline. Buyers should request the thermal design description and repeatable charging and discharging temperature tests before using cooling, low-temperature or safety-performance claims in sales materials.
10000mAh and 20000mAh Version Control
Both capacity options are listed against the same battery reference, while only one size and weight are shown. For each version, confirm cell count, nominal voltage, rated energy in Wh, usable output energy, dimensions, weight, label, runtime data and transport documentation. Do not apply measurements or test results from one version to the other without written confirmation.
OEM/ODM Quantity Tiers
- 500 pcs: quotation tier for the existing AJ07 platform with the approved OEM scope.
- 1000 pcs: quotation tier for additional approved colour, packaging or documentation changes.
- 2000 pcs: quotation tier for deeper ODM evaluation involving battery, cable, PCBA, firmware, thermal design or structure.
Logo, colour, cable specification, capacity version, packaging, labels, accessories, samples, tooling, compliance scope, schedule and warranty must be confirmed in the written quotation. A quantity tier does not automatically guarantee that every customization item is available.
B2B Buyer Verification Checklist
- Confirm capacity-specific dimensions, weight, Wh rating and usable output energy.
- Test retractable-cable length, pull force, retraction cycles and connector durability.
- Verify Type-C cable, Type-C port and USB-A profiles with target devices.
- Test all required simultaneous-output combinations and total power allocation.
- Request repeatable thermal data before using Ice-Sense cooling claims.
- Verify charging-protocol, battery, transport, electrical-safety, EMC and material documents required for the target market.
- Approve logo, colour, packaging, labels and the 500 / 1000 / 2000 pcs quotation tier.

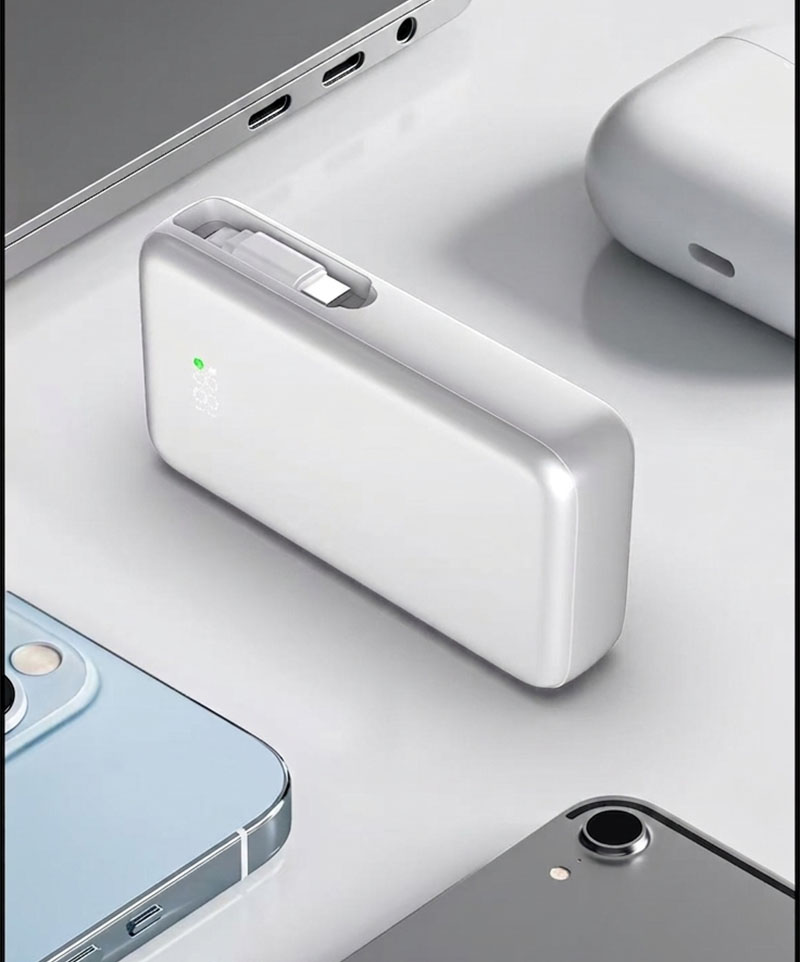

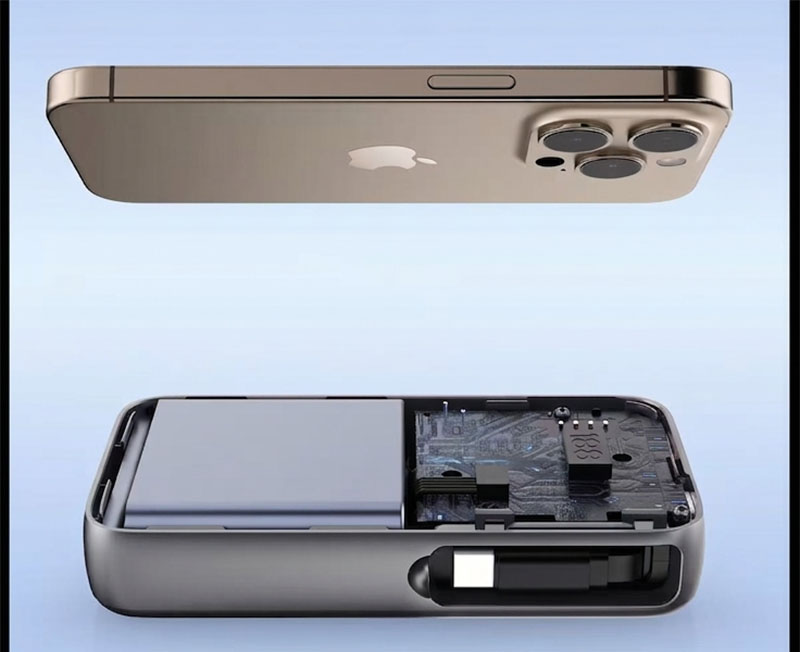

AJ07 Product Images
Frequently Asked Questions: AJ07 Ice-Sense Cooling Power Bank
1. What specifications are confirmed for the AJ07?
The published AJ07 table lists 10000mAh and 20000mAh capacity options, a 105555 battery reference, 114 × 62 × 24mm dimensions, 209g weight, retractable Type-C cable output profiles up to 12V/1.5A, Type-C input profiles up to 9V/2A, Type-C output profiles up to 12V/1.67A, and USB-A output profiles up to 10V/2.25A with a stated 22.5W maximum. Final variant mapping, battery configuration, protocols, dimensions, labeling, and output behavior should be confirmed on the approved production datasheet.
2. What evidence should buyers request for AJ07 Ice-Sense Cooling?
The Ice-Sense name alone does not prove graphene, an aluminum-alloy plate, a ventilation structure, passive operation, a fixed temperature reduction, longer cycle life, higher usable capacity, or prevention of thermal throttling. Buyers should request thermal-material declarations, internal drawings, temperature-rise and infrared test reports with ambient and load conditions, comparison methodology, sensor locations, protection thresholds, cycle-test data, and model-to-report traceability.
3. What should buyers verify about the AJ07 retractable cable?
The electrical profiles are published, but cable length, jacket and conductor materials, wire gauge, bend life, pull-and-retract cycle rating, spring design, retention force, voltage drop, connector wear, and replacement policy are not established by the table. Buyers should request mechanical drawings, dimensional samples, cycle and bend tests, pull and retention results, cable-loss data, failure-mode records, and production inspection procedures.

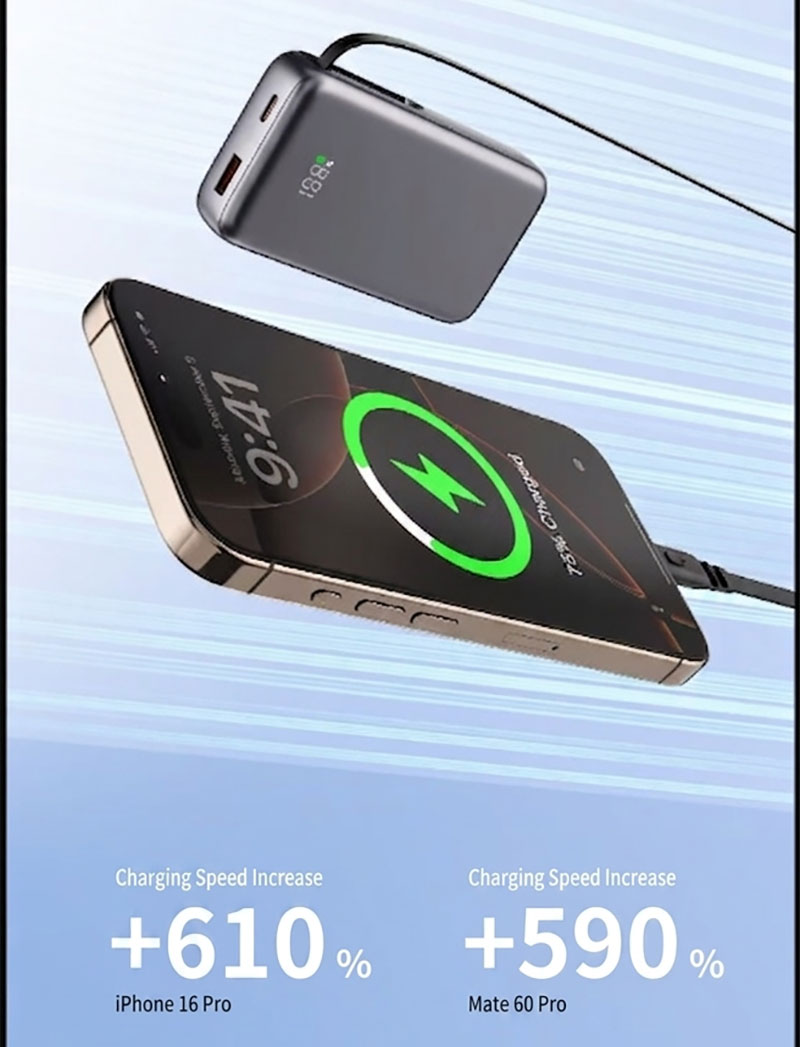

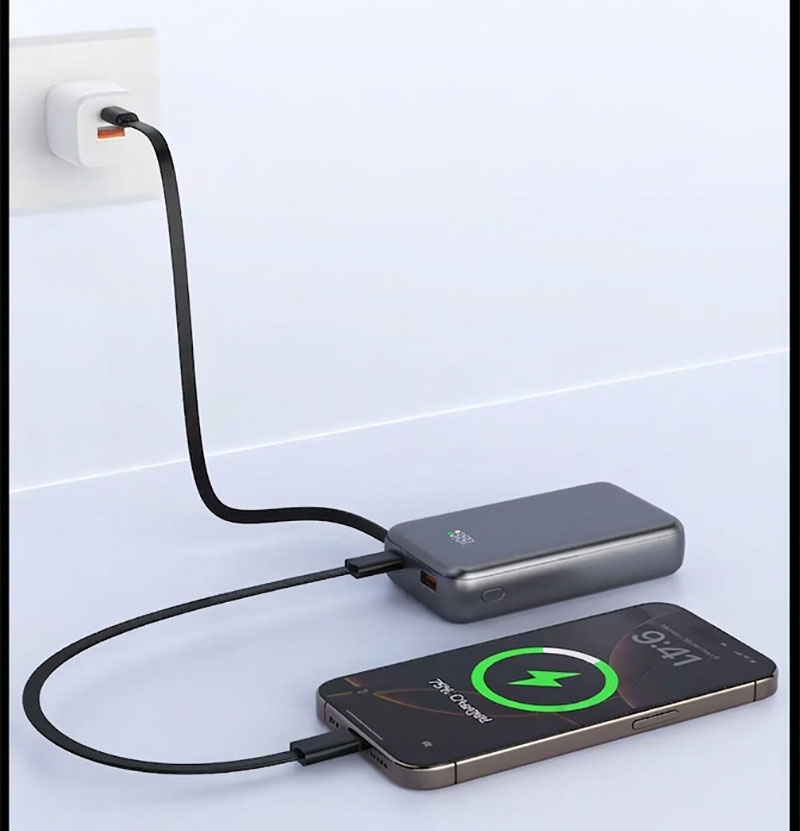

4. Can the AJ07 Type-C and USB-A outputs operate simultaneously?
The table lists individual output profiles, but it does not publish a verified simultaneous-output matrix, total shared-power limit, per-port allocation, priority logic, controller behavior, or temperature rise under multiple loads. Buyers should request tests for every required combination, including total and per-output power, voltage stability, thermal performance, protection response, and whether an output is reduced or disabled when another is active.
5. What is confirmed for the AJ07 10000mAh and 20000mAh versions?
Both capacity options are listed, but the table does not clearly map the published dimensions and weight to each version or establish usable energy, device charge counts, recharge time, battery configuration, cable specification, or output behavior for both variants. Buyers should request separate approved datasheets, samples, labels, transport documents, thermal tests, and capacity-verification results before comparing portability or runtime.
6. What fast-charging compatibility evidence should AJ07 buyers request?
Published voltage and current profiles do not by themselves prove named fast-charging protocols or USB industry compliance, universal compatibility, or device-specific charging speed. Buyers should request controller and protocol specifications, supported-profile matrices, negotiation logs, cable voltage-drop tests, protection behavior, applicable authorization or certification evidence, and test results for the exact target devices.
7. What OEM and ODM options are available for the AJ07?
Standard OEM service starts at 500 pieces for logo and packaging on the existing AJ07 platform. Light customization, such as an approved housing color, documentation, packaging, or cable-finish change, generally starts at 1,000 pieces. Thermal system, retractable mechanism, cable assembly, battery, PCBA, firmware, connector system, or enclosure changes are deeper ODM work and generally start at 2,000 pieces. Final MOQ, capacity version, colors, samples, tooling, lead time, compatibility, labeling, and certification scope must be confirmed in the quotation.
