Description

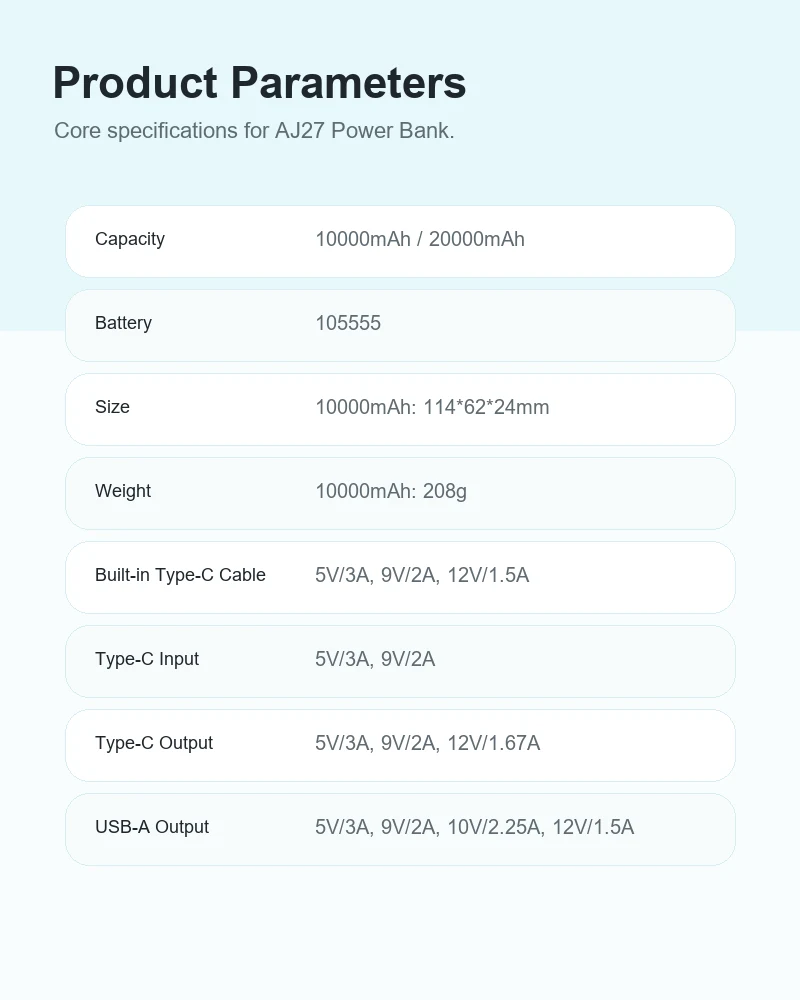

| Item No.: | AJ27 Power Bank |
| Capacity: | 10000mAh / 20000mAh |
| Battery: | 105555 |

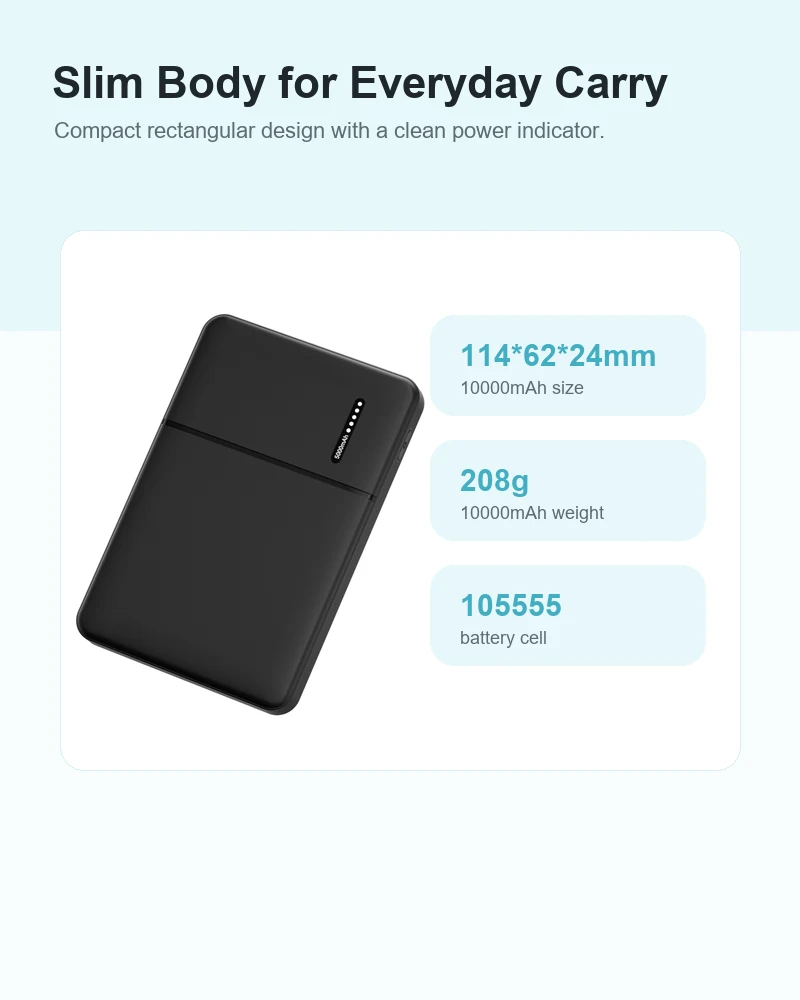

| Size: | 10000mAh: 114*62*24mm |
| Weight: | 10000mAh: 208g |
| Built-in Retractable Type-C Cable: | 5V/3A, 9V/2A, 12V/1.5A |
| Type-C Input: | 5V/3A, 9V/2A |
| Type-C Output: | 5V/3A, 9V/2A, 12V/1.67A |
| USB-A Output: | 5V/3A, 9V/2A, 10V/2.25A, 12V/1.5A (22.5W max) |

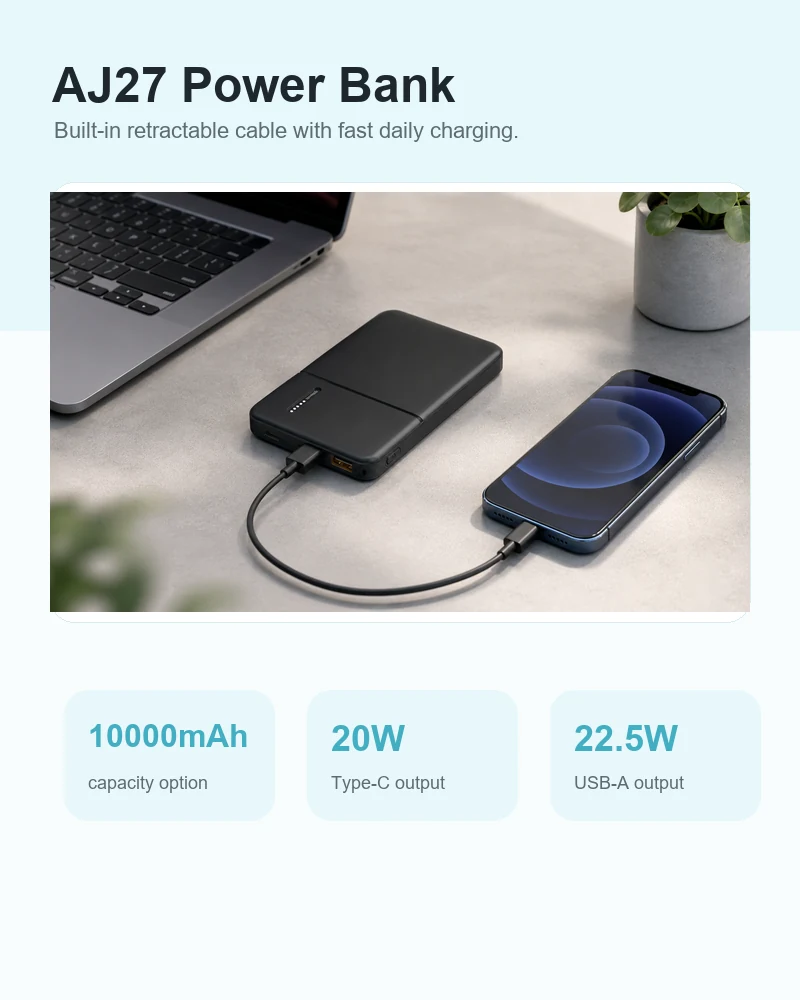

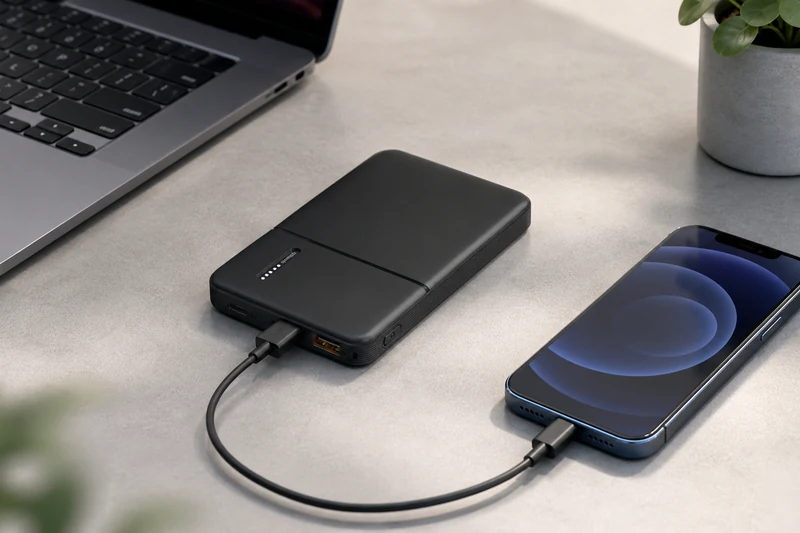

AJ27 Retractable Cable Power Bank for OEM and ODM Projects
The AJ27 is a power bank platform with a built-in retractable Type-C cable, a separate Type-C port, USB-A output, and 10000mAh / 20000mAh capacity options. The published specification lists a 105555 battery reference and, for the 10000mAh version, a 114 × 62 × 24mm body and 208g weight.
The retractable cable lists output profiles up to 12V/1.5A. The Type-C port lists input profiles up to 9V/2A and output profiles up to 12V/1.67A. USB-A output profiles include 10V/2.25A with a stated 22.5W maximum. Buyers should verify cable length and life, charging protocols, simultaneous-output behavior, 20000mAh variant dimensions, thermal performance, and final labeling on the approved sample and production datasheet.
OEM and ODM Order Guidance
- 500 pieces: standard OEM logo and packaging on the existing AJ27 platform.

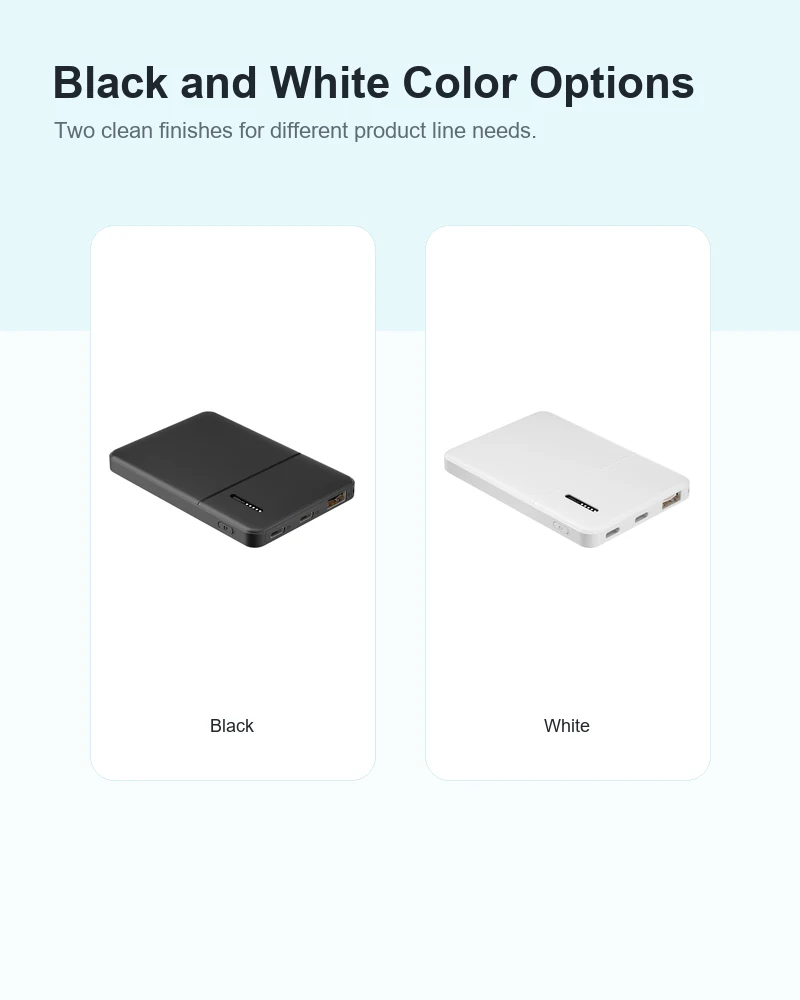

- 1,000 pieces: light customization such as an approved housing color, documentation, packaging, or cable-finish change.
- 2,000 pieces: deeper ODM work involving the retractable mechanism, cable assembly, battery, PCBA, firmware, thermal design, connector system, or enclosure.
Final MOQ, capacity version, colors, samples, tooling, lead time, compatibility, labeling, and certification scope must be confirmed in the quotation.
Frequently Asked Questions: AJ27 Retractable Cable Power Bank
1. What specifications are confirmed for the AJ27?
The published AJ27 specification lists 10000mAh and 20000mAh capacity options, a 105555 battery reference, a 114 × 62 × 24mm body and 208g weight for the 10000mAh version, retractable Type-C cable output profiles up to 12V/1.5A, Type-C input profiles up to 9V/2A, Type-C output profiles up to 12V/1.67A, and USB-A output profiles up to 10V/2.25A with a stated 22.5W maximum. Final battery configuration, protocols, dimensions, labeling, and output behavior should be confirmed on the approved production datasheet.

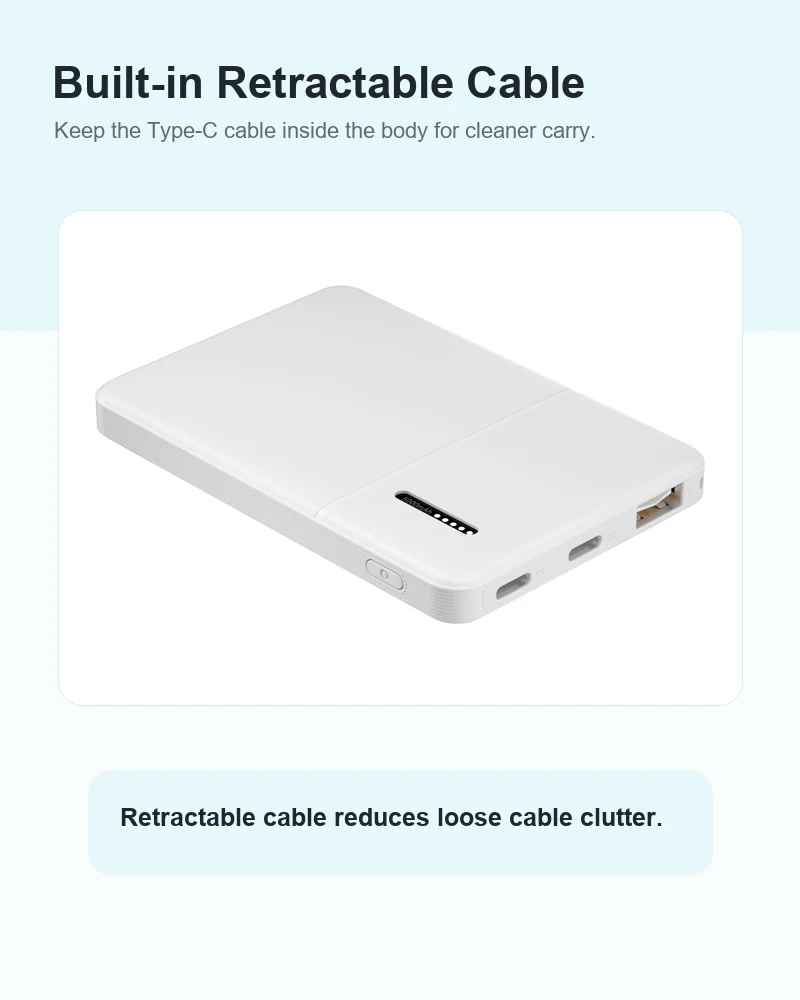

2. What should buyers verify about the AJ27 retractable cable length and mechanism?
The current specification does not publish a verified cable length, extension positions, retraction method, spool or guide construction, pull force, maximum extension load, connector retention, or behavior at the mechanical stop. Buyers should request mechanism drawings, operating instructions, dimensional samples, pull and retention tests, and misuse testing before publishing cable-length, ease-of-use, or anti-damage claims.

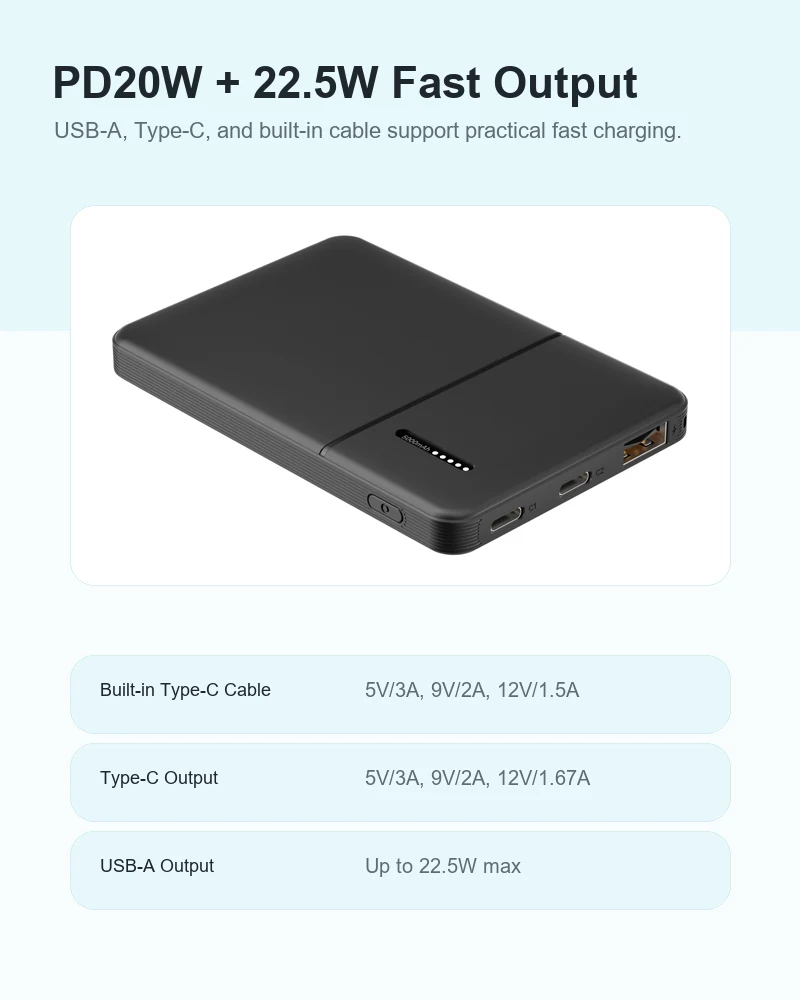

3. How does the AJ27 retractable cable output compare with the Type-C port?
The retractable cable lists 5V/3A, 9V/2A, and 12V/1.5A profiles, while the separate Type-C output also lists 12V/1.67A. These values establish different published maximum profiles, but they do not prove a named fast-charging protocol, a fixed recharge time, device-specific speed, controller architecture, or the reason for any difference. Buyers should request protocol specifications, negotiation logs, cable-loss data, voltage-drop tests, and target-device results.
4. What durability and anti-jam evidence should AJ27 buyers request?
The page does not publish a verified extension-cycle rating, cable conductor size, jacket material, gear design, guide material, dust seal, overload-release design, sand test, temperature-cycle result, or anti-jam performance. Buyers should request cycle-test conditions and pass criteria, bend and pull tests, connector-wear data, dust and debris evaluation, environmental tests, failure-mode records, replacement policy, and production inspection procedures for the exact retractable assembly.

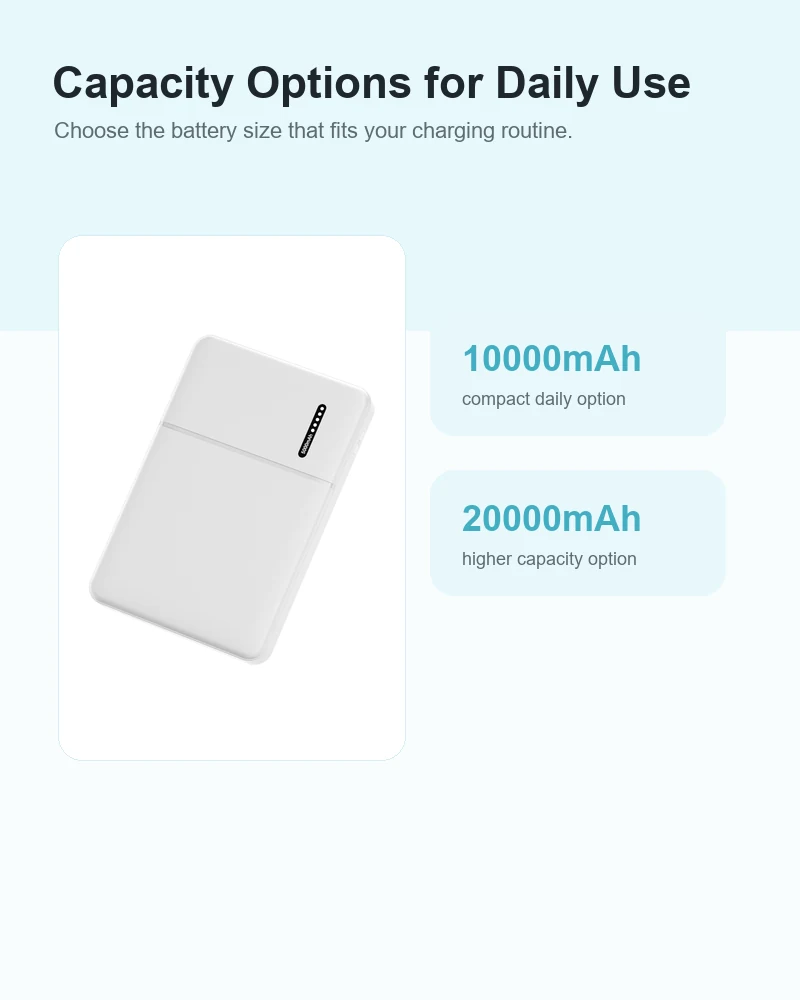

5. What is confirmed for the AJ27 10000mAh and 20000mAh versions?
Both capacity options are listed, but the current table publishes size and weight only for the 10000mAh version. It does not establish the 20000mAh dimensions, weight, battery configuration, usable energy, cable specification, recharge time, or output behavior. Buyers should request separate approved datasheets, samples, labels, transport documents, thermal tests, and capacity-verification results for each version before comparing portability, runtime, or market positioning.
6. Can the AJ27 cable, USB-A, and Type-C outputs operate simultaneously?
The table lists the individual output profiles, but it does not publish a verified simultaneous-output matrix, total shared-power limit, port priority, or protocol behavior under multiple loads. Buyers should request tests for every required output combination, including total and per-output power, voltage stability, temperature rise, protection response, and whether any port is reduced or disabled when another output is active.
7. What OEM and ODM options are available for the AJ27?
Standard OEM service starts at 500 pieces for logo and packaging on the existing AJ27 platform. Light customization, such as an approved housing color, documentation, packaging, or cable-finish change, generally starts at 1,000 pieces. Retractable mechanism, cable assembly, battery, PCBA, firmware, thermal design, connector system, or enclosure changes are deeper ODM work and generally start at 2,000 pieces. Final MOQ, capacity version, colors, samples, tooling, lead time, compatibility, labeling, and certification scope must be confirmed in the quotation.
